[Prameter]

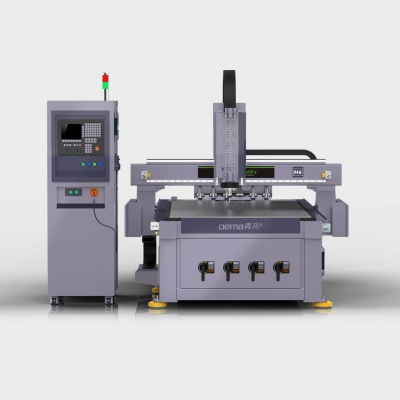

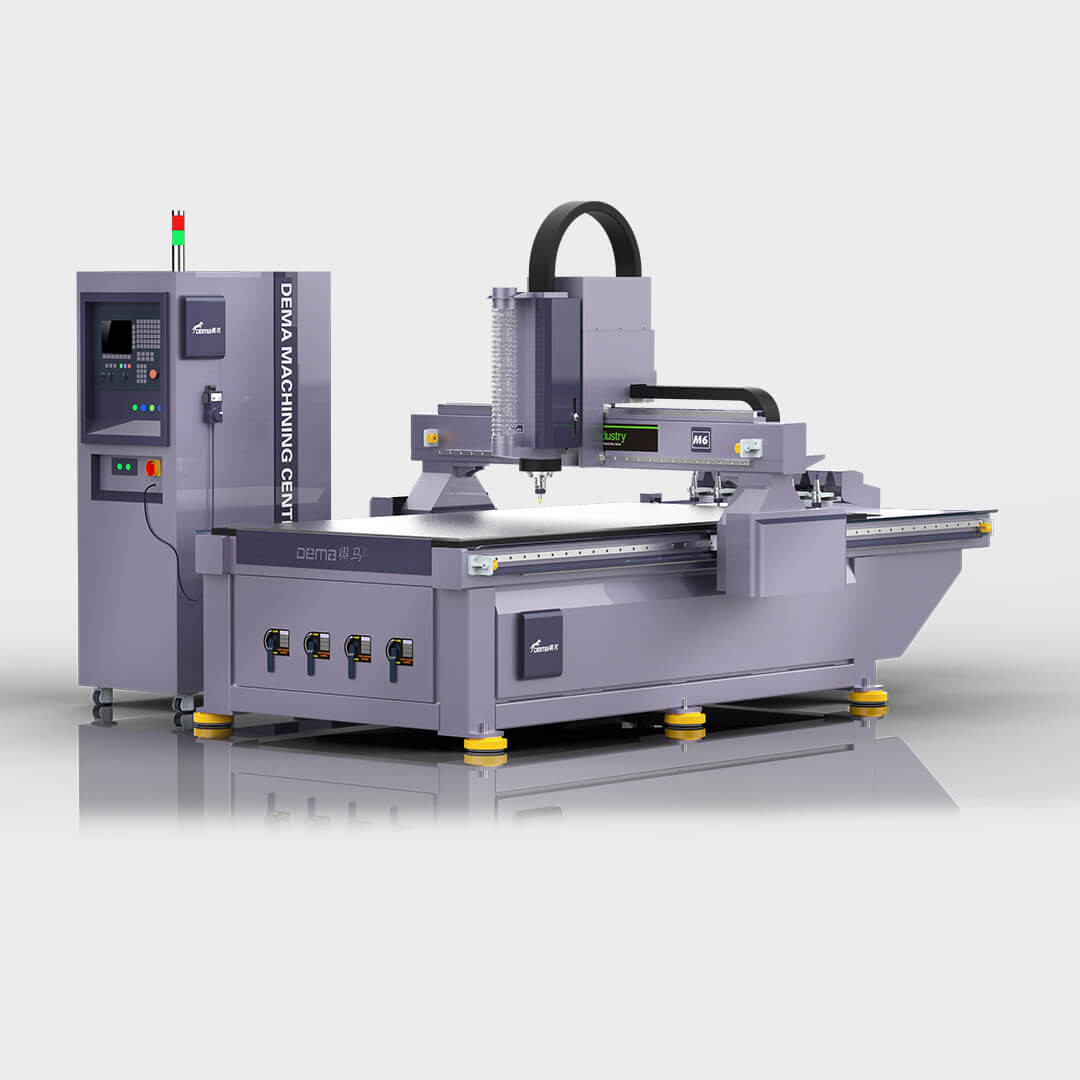

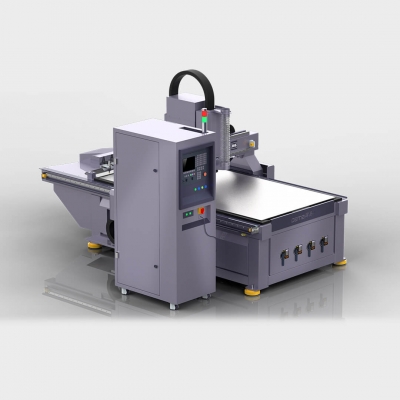

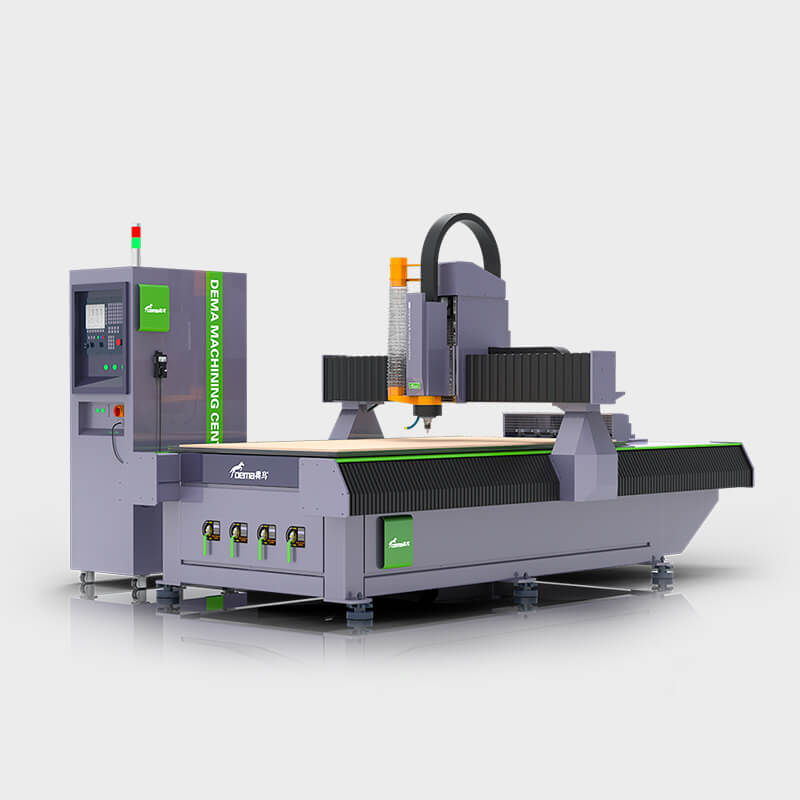

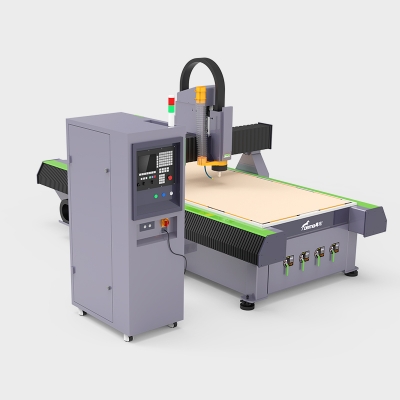

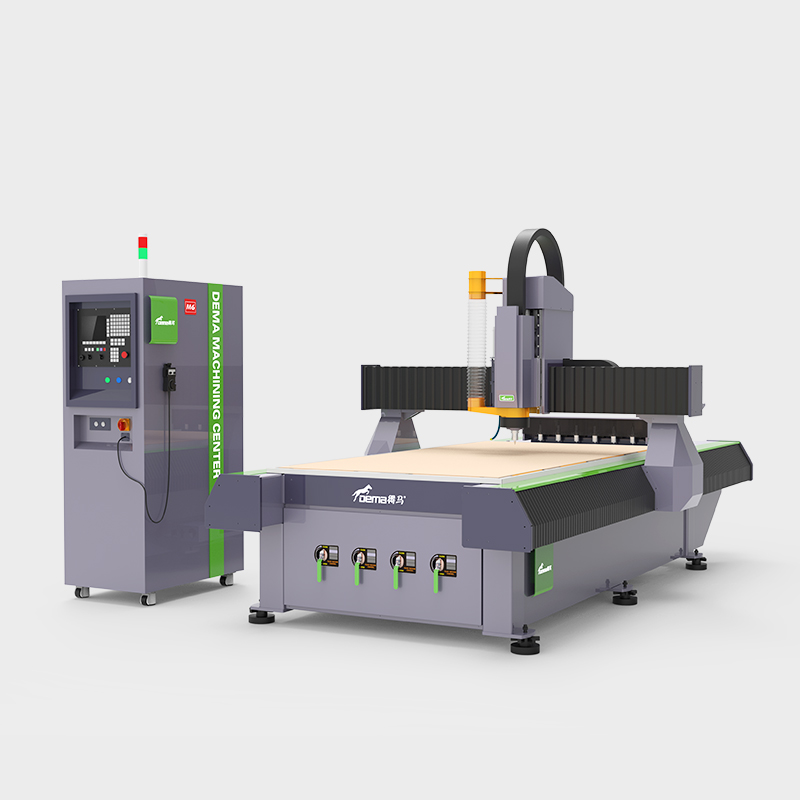

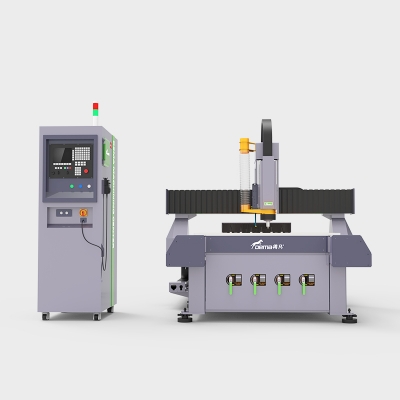

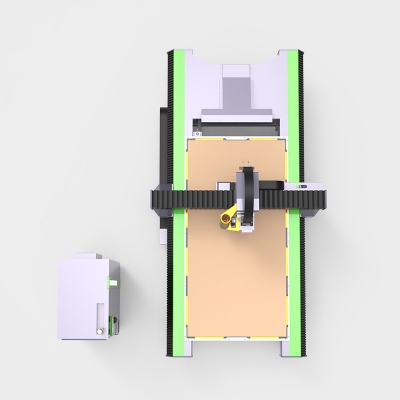

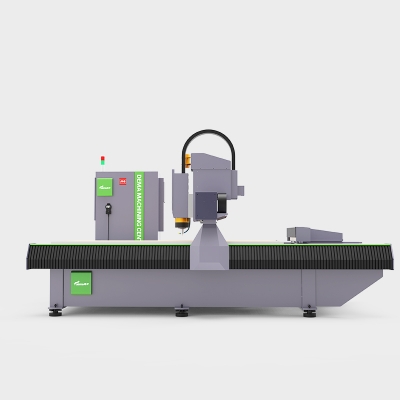

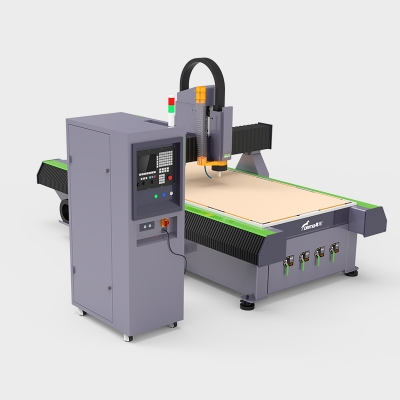

M6-1325 Industrial Engraving Machine
Model	M6-1325
Equipment Dimensions	2106mm×3806mm×2000mm
Processing Dimensions	1220mm×2440mm
Table Top Dimensions	1300mm×2540mm
Control System	WEIHONG NK280B
X/Y Transmission Form	Grinding Rack
Z Transmission Form	High-precision Ball Screw
Table Structure	4-Zone Vacuum Adsorption
ATC	Linear Tool Magazine, 6 Tools Clamping at One Time
Spindle Motor	7.5 kW Water-cooled Spindle
Spindle Speed	24000r/min
Moving Speed	60m/min
Working Speed	30m/min
Working Voltage	AC380V/50Hz

[Core Component Configuration]

■  Highly Flexible Cable
 The highly flexible cable, made of imported materials, is resistant to breakage, ensuring durability during long-term repeated operation.

■ Mature System
 Equipped with a mature industrial control system and S-type algorithm, it ensures high-speed operation of the machine tool, with a smooth bottom surface, clear contours, fine and non-serrated finishes. It is easy to operate and simple to get started with.

■ Suction-Clamping Dual Tabletop
 The table is equipped with PVC vacuum suction and aluminum alloy pressing grooves, which can not only strongly adsorb materials of different sizes but also enable clamping.

■ Rack Dual-Drive Structure
 The machine adopts a unique rack dual-drive structure, which enhances the stability and tensile resistance of the machine tool.

■  Linear Tool Magazine
 The custom-developed linear tool magazine enables more convenient and efficient processing.

[Application Industries]

■  Electrical Appliances
Suitable for drilling and cutting of acrylic touch panels, LED film screens, solar power panels, electrical partitions, fixtures, molds, bakelite jigs, fiberglass board jigs, etc.

■  Advertising Signs
Used for making acrylic crystal letters, PVC letters, doorhead signs, direction signs, reminder signs, cultural walls, abyss mirror base plates, light box special boards, plexiglass display cabinets, plaques, etc.

■  Decorative Decoration
Used for slotting, engraving and cutting various materials such as honeycomb panels, density boards, ecological boards, PVC boards, PP boards, compact laminates, fire - resistant boards, etc.

■  Window, Door & Furniture
Suitable for processing honeycomb panel retro doors, solid wood doors, plywood, MDF, antique doors and windows, hollow grilles, Chinese-style screens, wardrobe and cabinet door panels, drawers, display cabinets, European-style furniture, etc.

■  Crafts Industry
Used for processing wooden ornaments, wooden decorative paintings, acrylic ornaments, acrylic creative wall clocks, personalized jewelry boxes, desktop ornaments, wall decorations, creative gifts, etc.

■  Sand Table Models
Used for making real estate models, factory models, planning models, location models, exhibition display models, garden sand table models, transportation and machinery sand table models, etc.

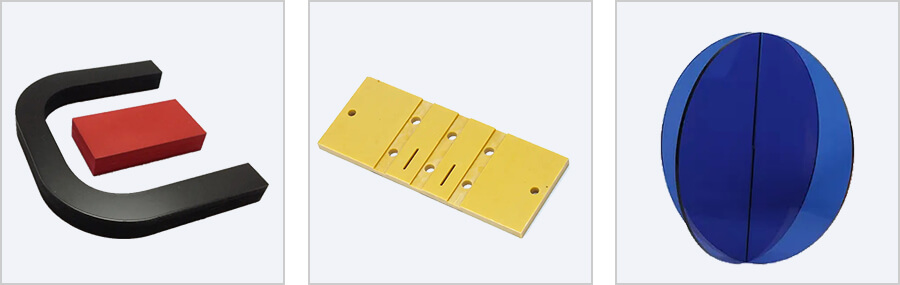

[Sample Display]
