[Parameter]

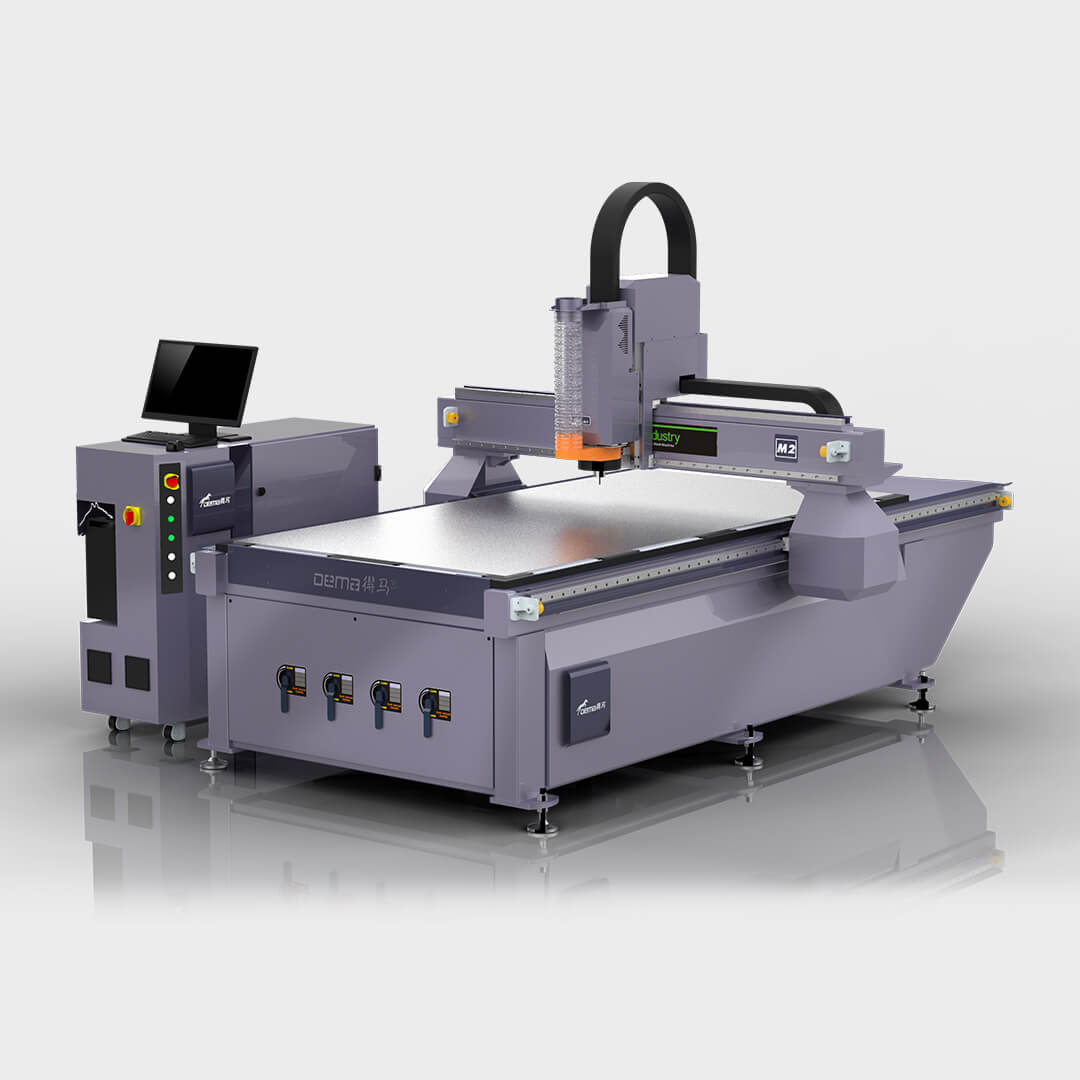

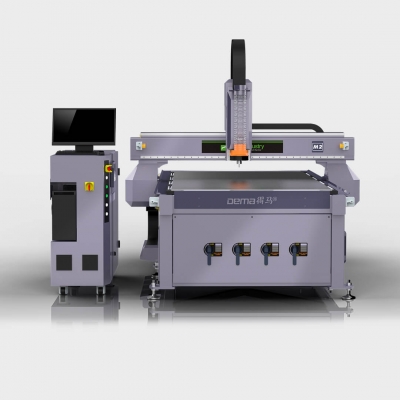

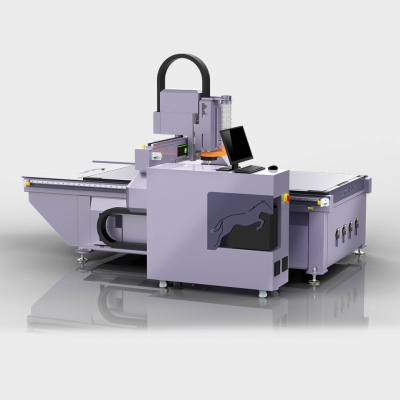

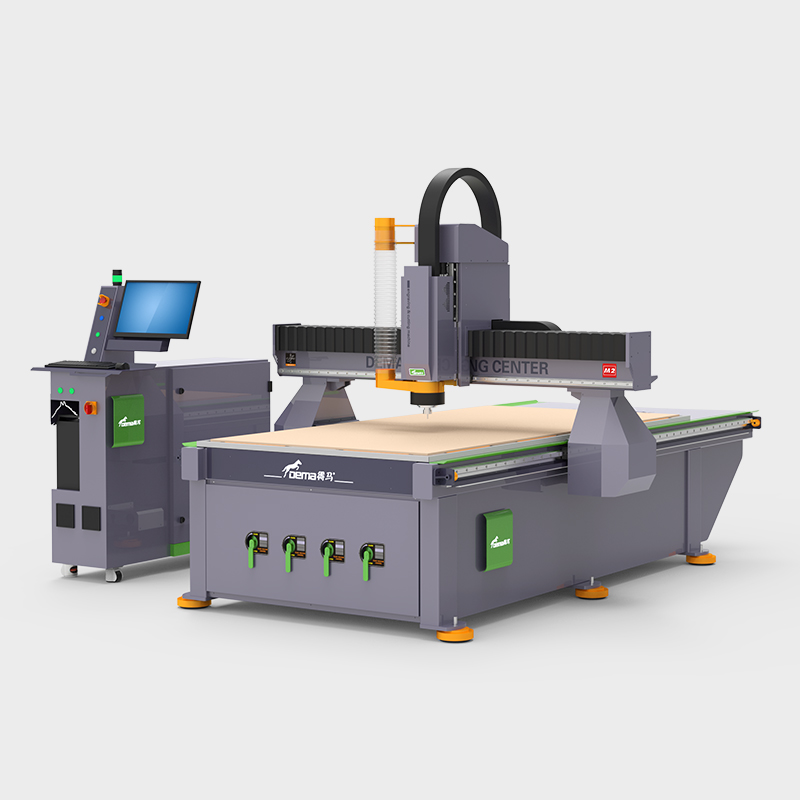

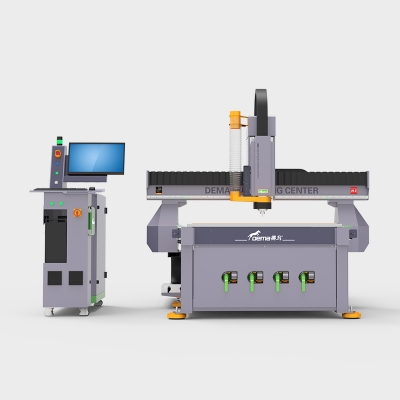

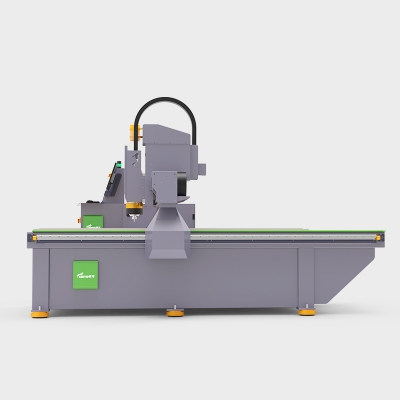

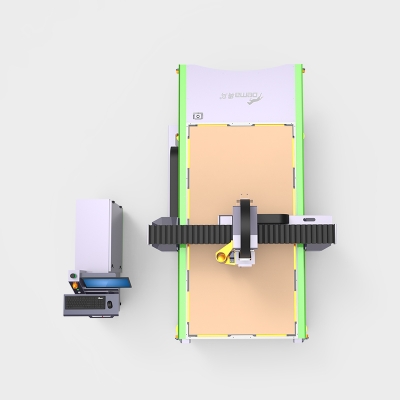

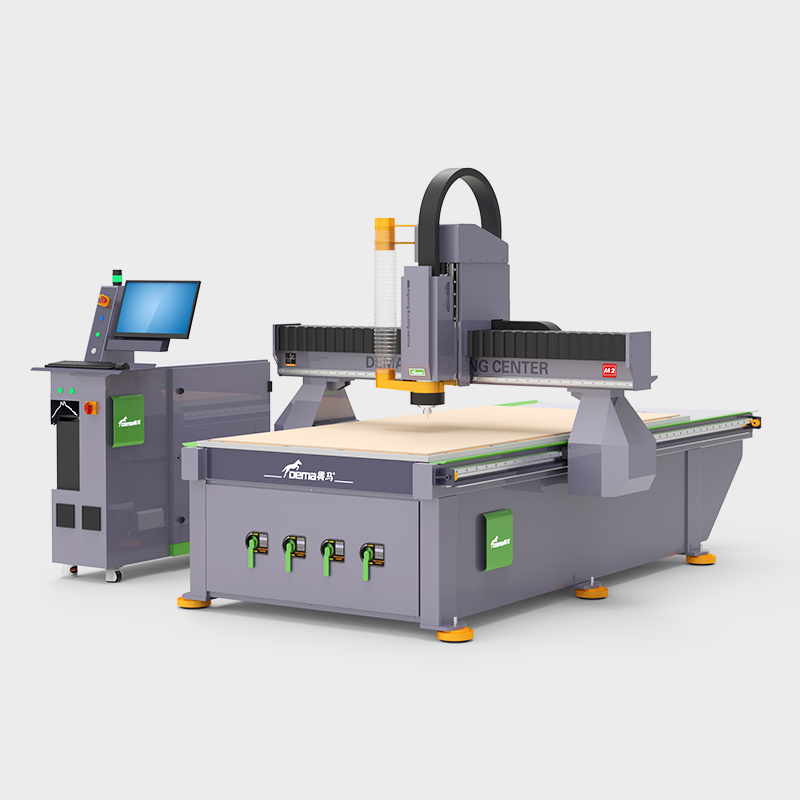

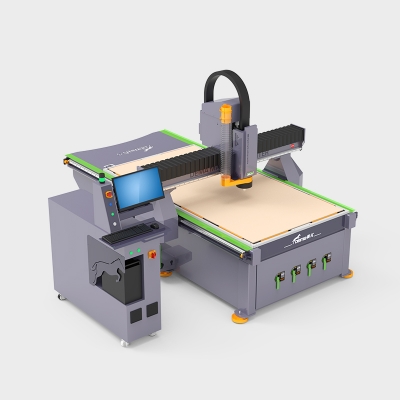

M2-1325 Mini Character Engraving Machine
Model	M2-1325
Equipment Size	2100mm×3300mm×2000mm
Processing Dimensions	1220mm×2400mm
Table Top Dimensions	1300mm×2540mm
Control System	DEMA V8
Floor Area Dimensions	X: 3600mm / Y: 3600mm
X/Y Transmission Form	Grinding Rack
Z Transmission Form	High-Precision Ball Screw
Table Structure	4-Zone Vacuum Adsorption
Edge-Following Function	CCD Visual Positioning (Optional)
Drive Motor	High-Precision Servo
Spindle Motor	5.5 kW Constant Torque Water-Cooled Spindle
Spindle Speed	24000r/min
Movement Speed	45m/min
Working Speed	30m/min
Working Voltage	AC380V/50Hz
Weight	1300kg

[Core Component Configuration]

■  Highly Flexible and Resilient Cables
The highly flexible cable made of imported materials is indomitable,it's hard to snap even repeatedly running for a long term.

■  Mature Control System
Equipped with a mature industrial control system, it ensures the machine tool operates at high speed, delivering a smooth bottom surface, clear contours, precise finishing without serrations, and features user-friendly operation for easy mastery.

■  Dual-Function Suction-Clamping Worktable
The worktable is designed with a PVC vacuum suction surface integrated with an aluminum alloy clamping groove, enabling it to strongly suction materials of various sizes and securely clamp them.

■  Dual-drive rack structure
The dual-drive rack structure improves the stability and tensile strength of the machine.

[Application Industries]

■ Advertising Signage
Suitable for processing storefront signs, light box billboards, PVC standees, foam board letters, acrylic signs, mall display stands, acrylic display racks, neon lights, department plaques, direction signs, reminder signs, etc.

■  Window Display Decoration
Used for producing wooden structure decoration materials, PVC board display racks, display stands, window props, acrylic decoration stacks, acrylic light box panels, pop-up store props, etc.

■  Indoor Furniture
Fine engraving on materials such as wood, artificial panels, medium-density fiberboard (MDF), and particleboard is used to produce headboards, cabinet panels, wardrobe doors, table tops, European-style doors, etc.

■  Craft Ornaments
Engraving on materials such as wood, acrylic, PVC, and organic panels is used to create souvenirs, handicrafts, jewelry boxes, display trays, ornament bases, etc.

■ Woodworking Industry
Used for processing woodcarving reliefs, antique furniture, panel furniture, European-style door panels, Chinese-style door panels, Chinese-style screens, wooden ornaments, wooden plaques, relief murals, etc.

■  Plate Processing
Processing various advertising plates, wooden plates, composite plates, etc., including but not limited to PC boards, particleboards, ABS boards, space boards, honeycomb boards, medium-density fiberboards (MDF), etc.

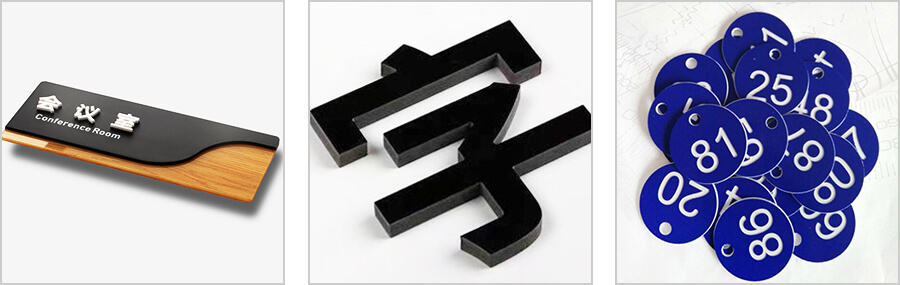

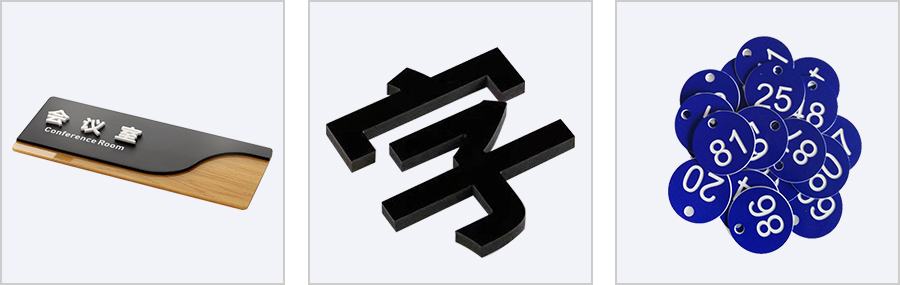

[Sample Display]
