[Features]
The new "X6" introduces a series of new core technologies
■ Laser cutting machine designed with brand new concept for advertising industry.
■ The bed structure is welded by pipe welding structure and finished in one time,which experiencing heat treatment after forming.
■ The whole machine adopts a unique rack and double-drive structure, which improves the stability and synchronization of the machine tool.
■ Equipped with an industrial-grade control system developed by the advertising industry to ensure fast and accurate data processing and motion control.
■ X6-1330 laser cutting machine equipped with highly flexible cables, it could effectively enhance the durability and stability for a long-firing operation.
■ Equipped with HASSFULL industrial-grade laser head that has been proven in Switzerland.

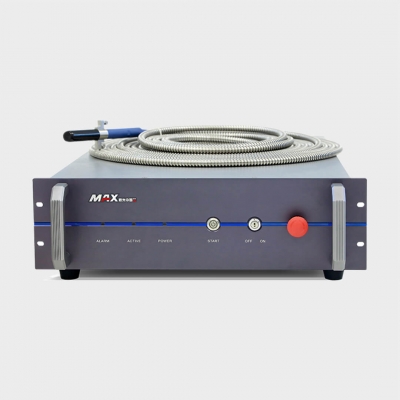

■ Equipped with the domestic leading MAX laser generator.
[Applicable industries and materials]

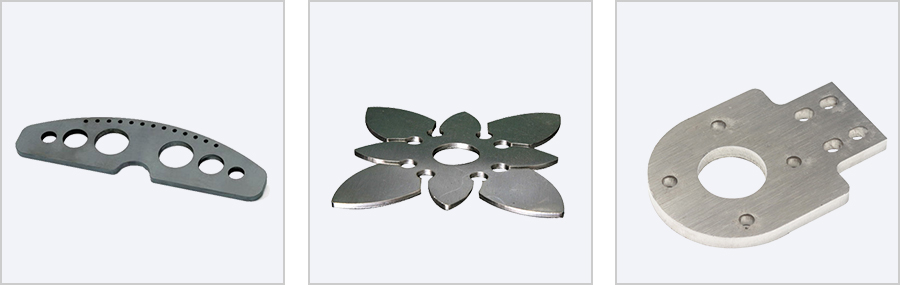

Advertising industry: stainless steel cutting, galvanized plate cutting, cold plate cutting, carbon steel plate cutting, various advertising metal plates, logo production.
Industrial industry: cutting of titanium plates, metal hollows, handicrafts, stainless steel plates, cold plates, carbon steel plates, and various metal plates.
[Parameter]

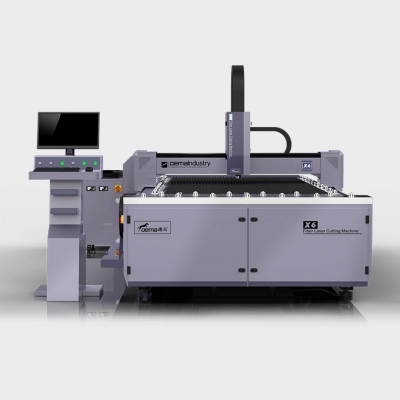

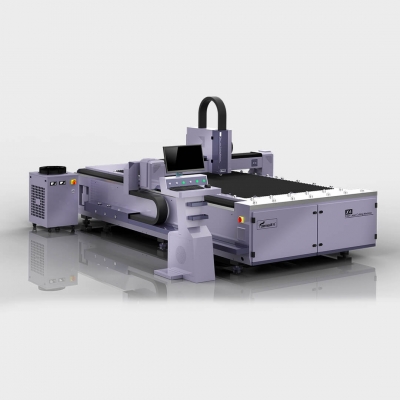

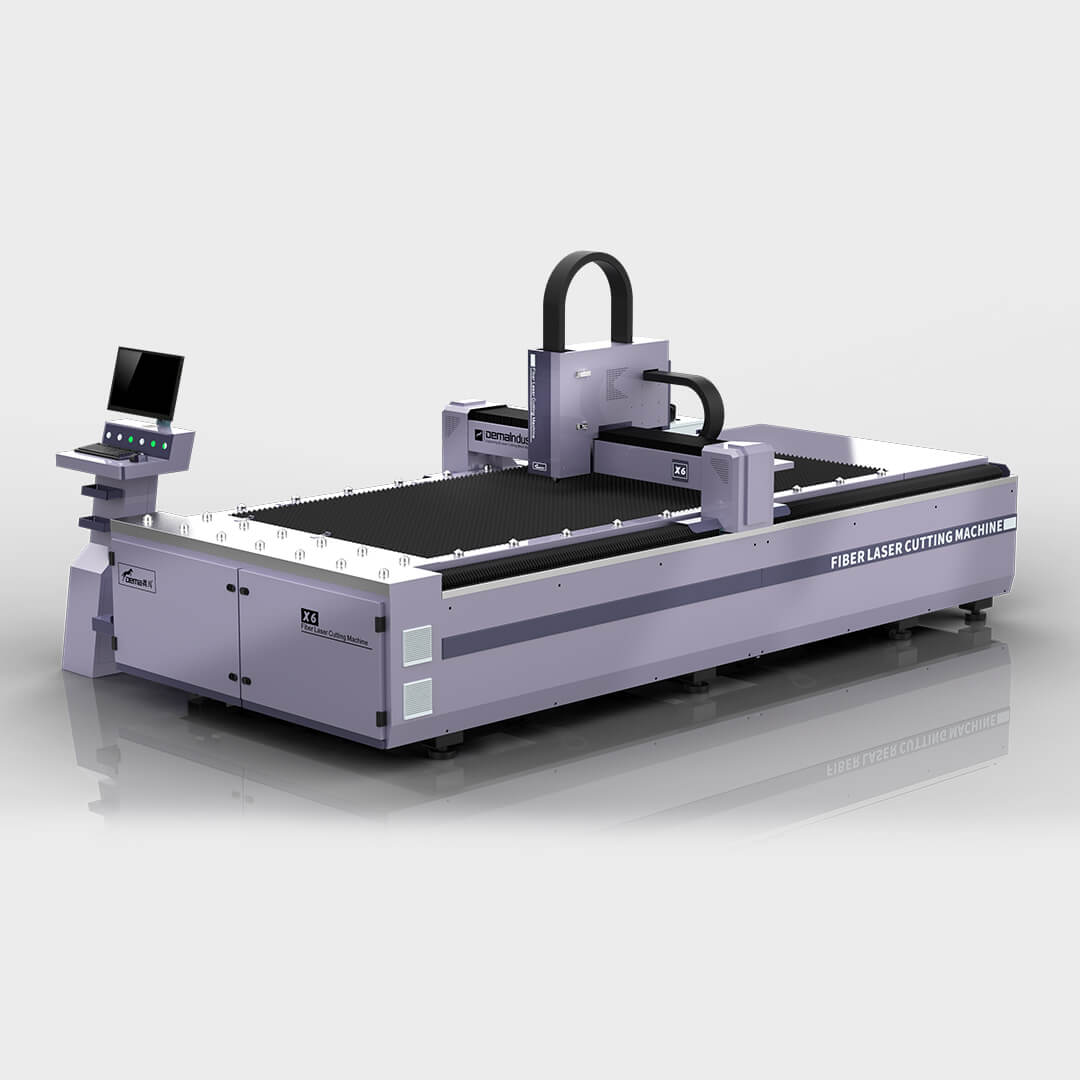

Dema-Fiber laser-X6-1330
Engraving & Laser Cutting Work Machine
|
|
Features:
|
|
Dimensions
|
2300mm*4300mm*1900mm
|
|
Working area
|
1300mm*3000mm
|
|
Machine tool treatment
|
High temperature tempering treatment
|
|
Control system
|
Shanghai WEIHONG control system
|
|
Laser head
|
Manual focusing laser head
|
|
Laser generator
|
Max continuous laser generator
|
|
X/Y transmission form
|
Grinding rack
|
|
Z transmission form
|
Ball screw
|
|
Drive motor
|
High precision servo motor
|
|
Drive rail
|
High precision grinding rail
|
|
Transmission reduction
|
Planetary reducer
|
|
Chiller
|
Industrial dual-control chiller
|
|
Electrical components
|
Schneider
|
|
Air Conditioner
|
1HP industrial grade inverter air conditioner
|
|
Pneumatic components
|
High pressure solenoid valve
|
|
Air pressure control
|
Precision pressure reducing valve
|
|
Lubrication and oil injection
|
Automatic oil injection
|
|
Control cabinet
|
Embedded control cabinet, independent console
|
|
Working voltage
|
AC380/50HZ
|
|
Maximum moving speed
|
60m/min
|
|
Maximum working speed
|
30m/min
|

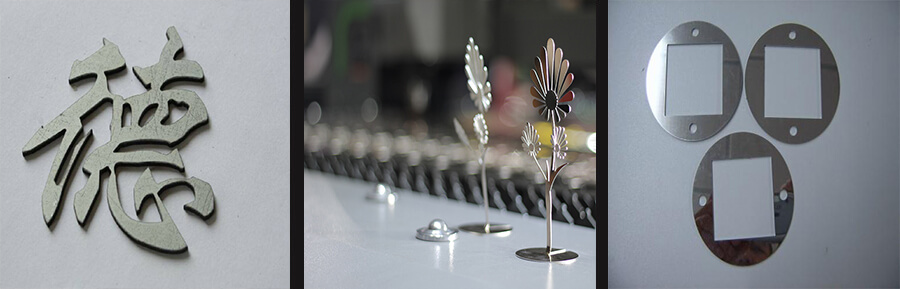

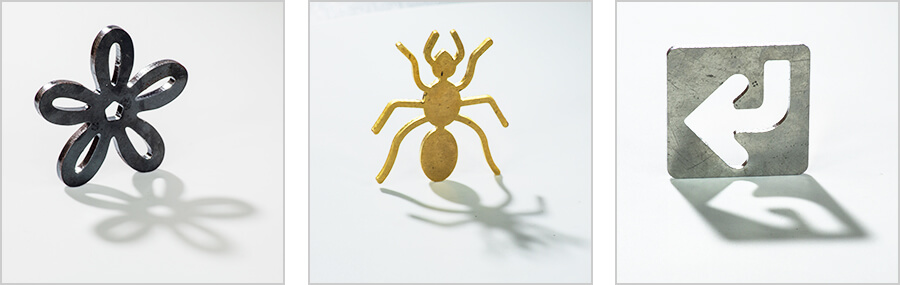

[Case]
[Certifications]
