[Prameter]

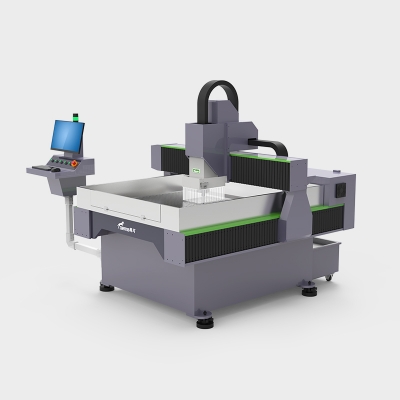

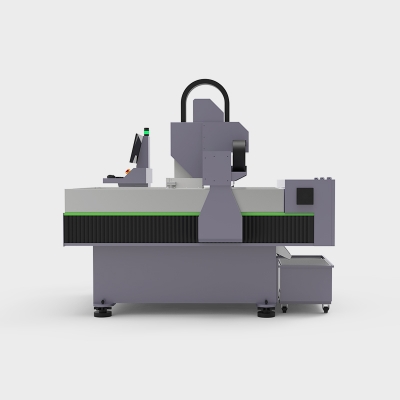

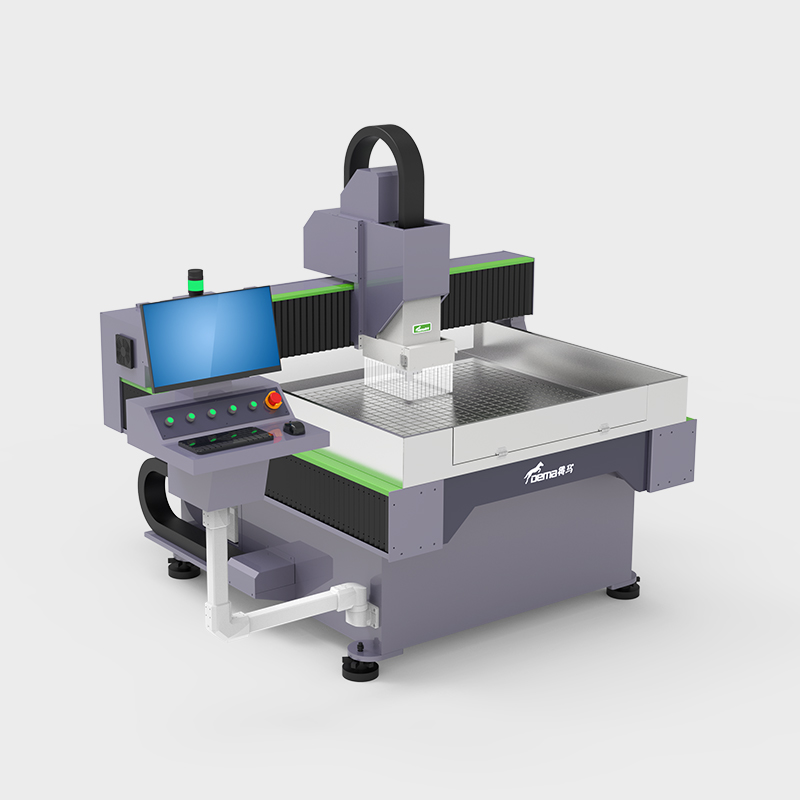

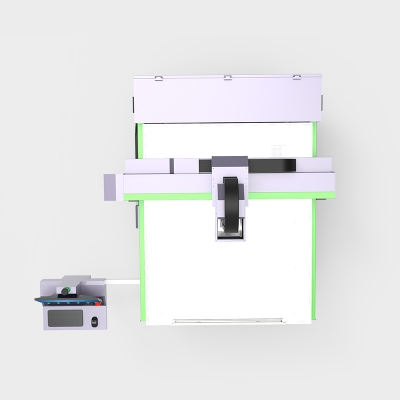

F80-1080 Metal Relief Engraving Machine
Model	F80-1080
Table Size	1000mm×800mm
Machine Size	2200mm×2050mm×1880mm
X/Y/Z Axis Travel	1000mm/800mm/100mm
Rapid Traverse Speed	20m/min
Maximum Cutting Feed Rate	12m/min
Control System	WEIHONG Bus NC60C/NK300 (Optional)
Servo Motor	WEIHONG Bus 1kW
Transmission Components	Ball Screw
Positioning Accuracy	士0.02mm/300mm
Repeat Positioning Accuracy	士0.05mm/300mm
Maximum Spindle Speed	24000r/min
Spindle Output Power	5.5kW
Maximum Power	10kW
Power Supply Voltage	AC220V/380V
Machine Total Weight	1500kg

[Core Component Configuration]

■  Compact Table, Versatile Performance
The 1m×0.8m working table is ideal for small and medium-sized workpieces such as cultural and creative medals and industrial nameplates. It supports processing copper, aluminum and bakelite materials, enables custom machining and small-batch production, and features a compact footprint that meets the processing needs of various industries.

■  Intelligent Cantilever CNC System
The cantilever allows flexible position adjustment, enabling easy operation with no extra space occupation. The robust main structure ensures stable operation and guaranteed engraving precision.

■  Automatic Lubrication
It lubricates the spindle and guide rails at a fixed time and quantity without manual refueling, which reduces component wear, improves the stability of machining precision and extends the service life of the equipment.

■  T-slot + Vacuum Water Tank Adsorption Working Table
Adopts a T-slot + vacuum water tank adsorption working table, which can securely fasten heavy workpieces and adsorb thin plates quickly without surface damage. It ensures machining precision and is suitable for high-precision processing of workpieces in various specifications.

■  Plate and Tube Welded Machine Body
Adopts a plate and tube welded machine body. The cast iron beams and columns undergo aging treatment, featuring high rigidity and excellent vibration absorption. It offsets cutting vibration, ensures machining precision, maintains shape for long-term use, and is ideal for high-precision processing of metal nameplates.

[Application Industries]

■  Hardware & Cultural and Creative Products
Relief engraving of copper and aluminum ornaments, metal art paintings, and texture processing of archaized bronze artifacts. Customizable metal badges and cultural and creative bookmarks, which reproduce delicate textures and three-dimensional layers.

■  Mold Manufacturing
Precision relief engraving of mold cavities on bakelite insulation boards and high-precision texture engraving of metal electrode molds, suitable for the processing needs of small and medium-sized molds.

■  Electronics & Electrical Appliances
Precision relief engraving of marks on bakelite insulation boards and fine processing of decorative textures on metal electrical enclosures. Ensures clear and wear-resistant marks as well as three-dimensional and neat textures on enclosures.

■  Decorative Building Materials
Fine engraving of patterns on aluminum relief ceiling panels, copper art decorative panels and metal doors & windows. Featuring three-dimensional and full textures, it adapts to diverse styles of home and commercial decoration.

■  Gift Customization
Relief engraving of personalized metal medals, commemorative coins and custom gifts. With three-dimensional and clear patterns and exquisite outstanding texture, exclusive patterns can be customized on demand.

■  Industrial Identification
Exquisitely crafted relief characters and patterns on metal nameplates and equipment identification plates with clear and neat characters, suitable for custom identification of various industrial equipment.

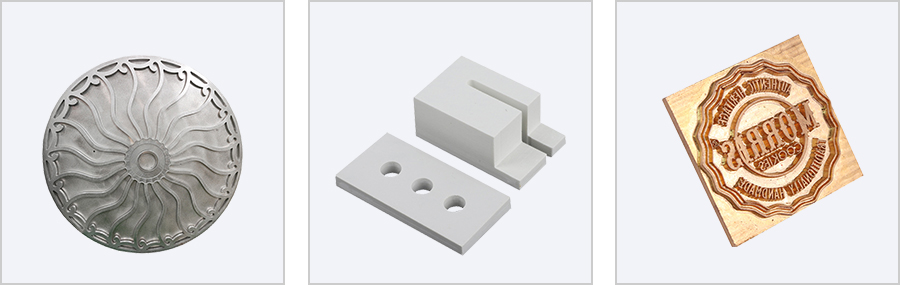

[Sample Display]
