[Prameter]
|

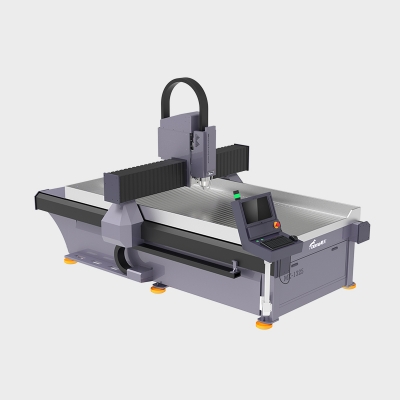

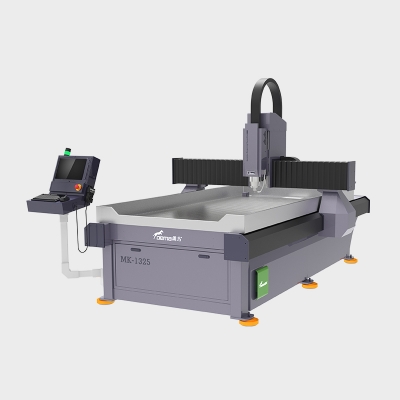

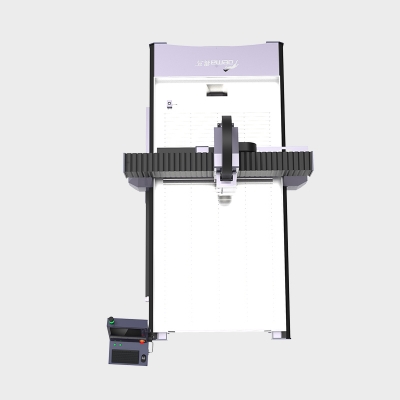

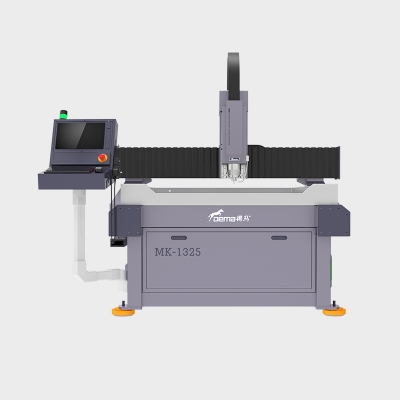

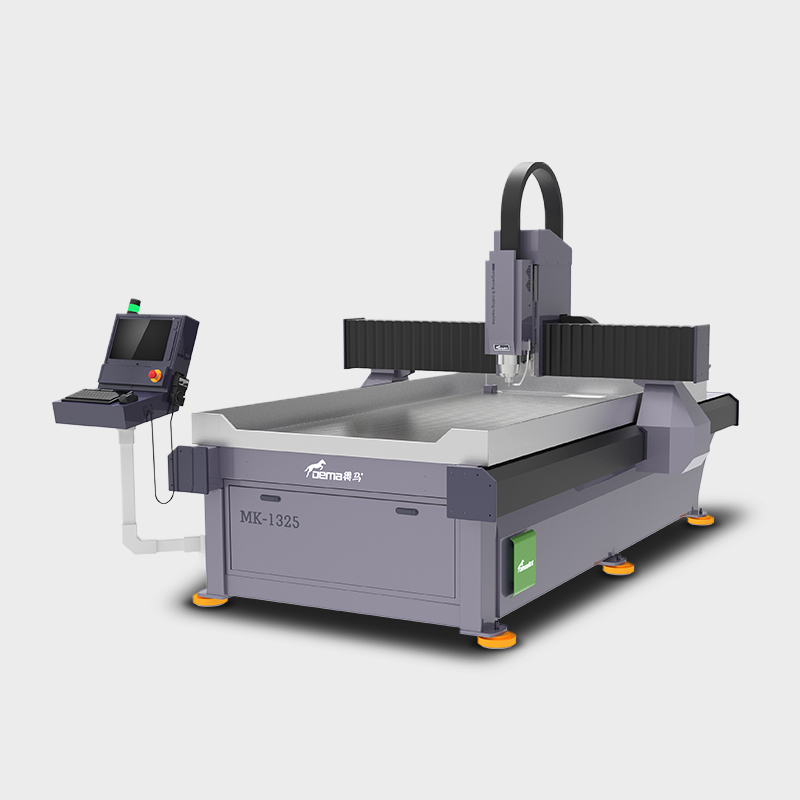

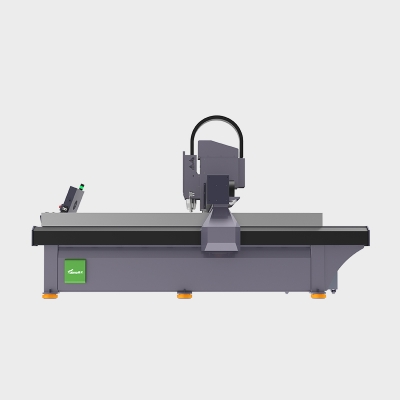

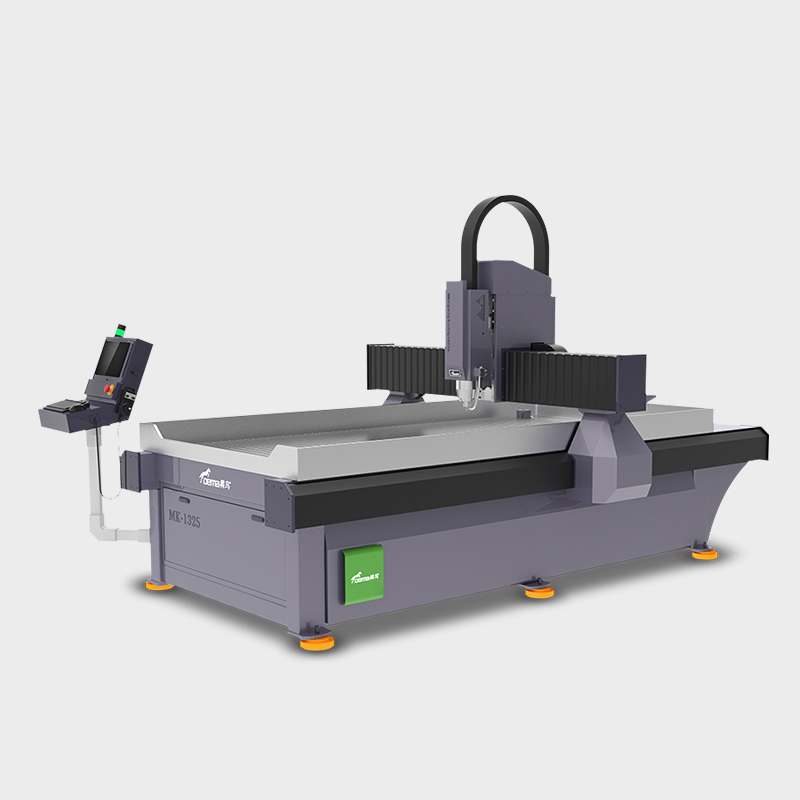

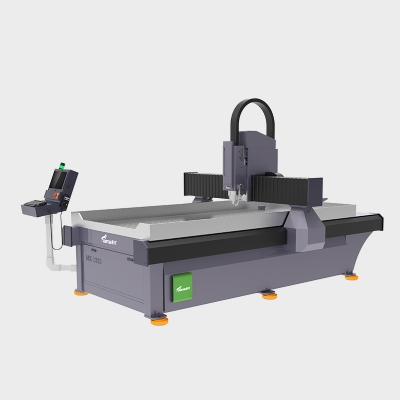

MK-1325 Water Sink Engraving Machine
|
|
Model
|
MK-1325
|
|
Equipment Size
|
2100mm×3560mm×1800mm
|
|
Working Stroke
|
1300mm×2500mm×200mm
|
|
Table Size
|
1250mm×2450mm
|
|
Gantry Passing Height
|
200mm
|
|
Worktable Type
|
aluminum alloy press plate
|
|
Worktable Maximum Load Capacity
|
600kg/㎡
|
|
Control System
|
Shanlong All-in-One MachineSpindle
|
|
Supported Software
|
Beijing Jingdiao/TYPE3/Wentai/UG/MASTCAM, NC G-code
|
|
Spindle Speed
|
24000r/min
|
|
Spindle Motor
|
5.5kW water-cooled spindle
|
|
Dynamic Balance Class
|
G0.3
|
|
Chuck Specification
|
ER25
|
|
Installable Tool Specification
|
Φ1-16mm
|
|
Tool Change Method
|
manual
|
|
X/Y/Z Control Drive Motor
|
0.75kW
|
|
Lubrication System
|
automatic oiling
|
|
X/Y/Z Rapid Traverse Speed
|
60/60/20 m/min
|
|
Maximum Cutting Feed Speed
|
45m/min
|
|
X/Y/Z Repeat Positioning Accuracy
|
±0.02mm
|
|
Working Voltage
|
AC380V/50Hz
|
|
Weight
|
1300kg
|
|
Total Power
|
10kW
|
[Core Component Configuration]
■ Tube-Welded & Quenched Bed
High rigidity, impact-resistant, load-bearing and not easily deformed; enhanced hardness, wear/damage resistant, and stable precision for long-term use.
■ Cantilever Integrated Control Box
Compact & space-saving; close to console for easy operation/monitoring; fast-response integrated system with protection adapted to sink environments, ensuring stable engraving precision.
■ T-Slot+Sink Tabletop
T-slot secures workpieces of various sizes against shifting; sink cools fast, flushes debris to keep clean. Together, they boost stability and efficiency.
■ Powerful Industrial Control System
Compatible with various domestic/foreign CAD/CAM software (Beijing Jingdiao, TYPE3, etc.), supports NC G-code, with functions including power-off resume carving and intelligent trajectory preview.
■ Stepless Speed Regulation
Spindle with stepless speed: 0~24000r/min, freely adjustable; adapts to varied processing speed needs, ensuring adaptability.
[Application Industries]
■ Electronic Materials
For precision cutting of bakelite boards, engraving of fiberglass components, grooving of epoxy substrates, shaping of PC board electronic housings, cutting of PP insulators, engraving of PE gaskets, drilling/milling of insulation boards, etc.
■ Metal Light Processing
For copper door and aluminum door engraving, thin aluminum sheet cutting, copper plate lettering, aluminum-plastic panel processing, metal nameplate making, metal nameplate grooving, etc.
■ Furniture Decoration
For solid wood door pattern engraving, cabinet door panel shaping & milling, wooden decorative strip processing, soft-padded backdrop cutting, display cabinet panel cutting, furniture hollow carving, wooden mural engraving, etc.
■ Stone Industry
For tombstone lettering & carving, marble relief, quartz sink hole drilling, stone backdrop shaping, stone platform mosaic, jade ornament precision carving, stone railing pattern processing, etc.
■ Model & Mold
For building model wall cutting, building model door/window engraving, ship model part processing, bathroom product wooden mold engraving, foam lost foam cutting, furniture bent wood mold shaping, etc.
■ Advertising Signs
For acrylic letter cutting, PVC sign engraving, dual-color plate sign making, aluminum-plastic panel ad letter processing, PVC foam board display stand cutting, ad light box panel shaping, crystal letter engraving, etc.

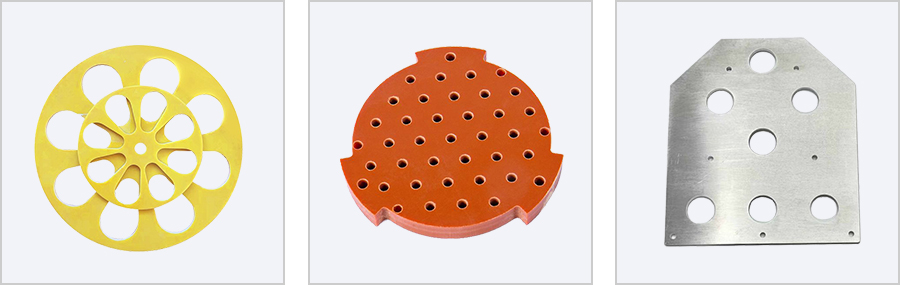

[Sample Display]
