[Prameter]

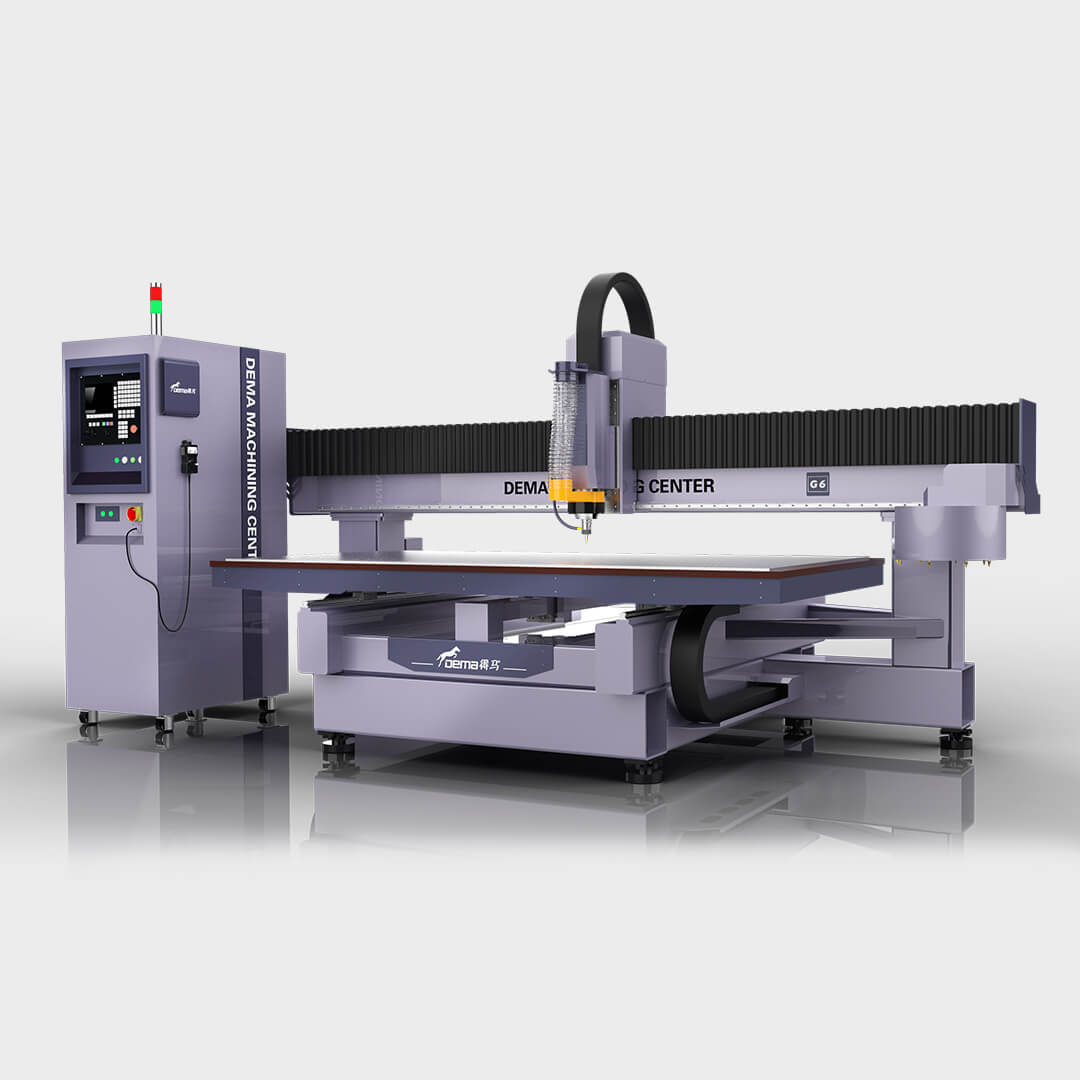

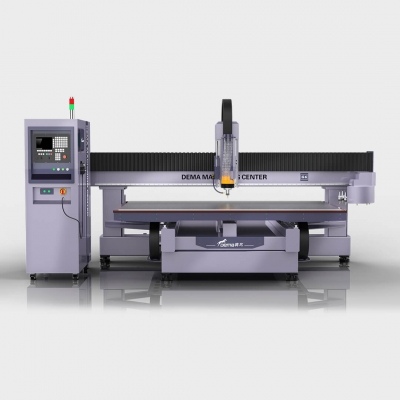

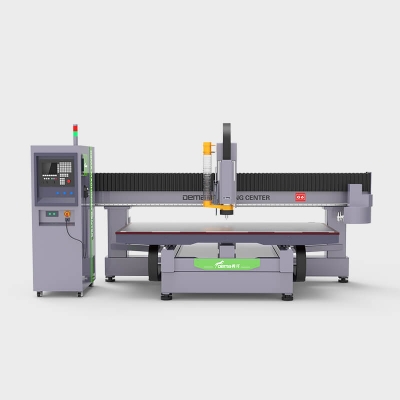

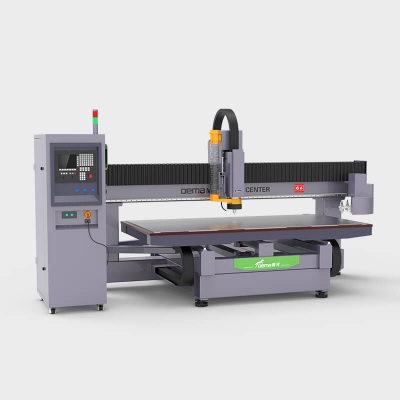

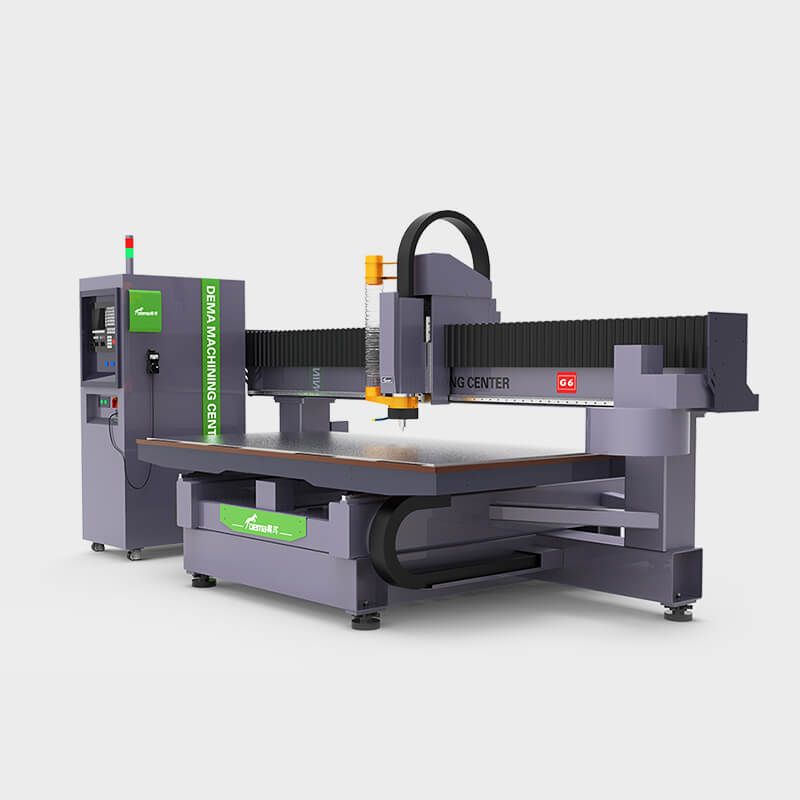

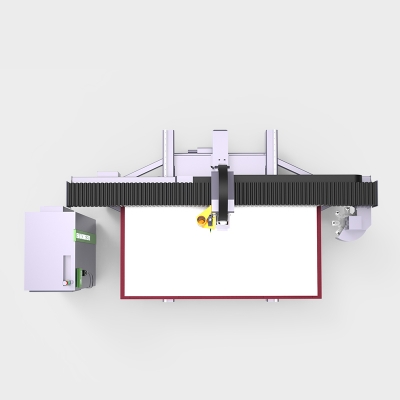

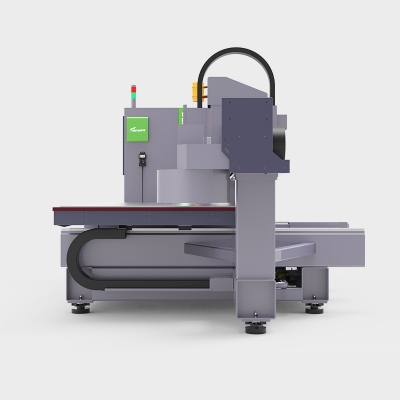

G6-2513 Machining Center
Model	G6-2513
Equipment Dimensions	3800mm*2500mm*2000mm
Processing Dimensions	2440mm*1220mm
Table Top Dimensions	2540mm*1300mm
Floor Area Dimensions	X:4500mm/Y:2800mm
Control System	WEIHONG NK280B
X/Y/Z Transmission Form	High-precision Ball Screw
Table Structure	2-Zone Vacuum Adsorption
ATC	Disc-type Servo Tool Magazine, 8 Tools Clamping at One Time
Spindle Motor	7.5 kW Water-cooled Spindle
Spindle Speed	24000r/min
Moving Speed	45m/min
Working Speed	25m/min
Working Voltage	AC380V/50Hz

[Core Component Configuration]

■  Unique Table-supported Structure
The machine features a unique table-supported structure, which significantly improves the machining accuracy and vibration resistance of the machine tool.

■  High-flex cable with unyielding durability
 Crafted from imported materials, this high-flex cable is engineered to withstand extreme stress, ensuring reliable performance even after millions of repetitive motions. Its robust construction prevents breakage during continuous, high-frequency operations, extending service life and minimizing downtime.

■  Mature System
 Equipped with an industrial-grade control system, it ensures that the machine tool operates at high speeds with precise, jagged-free finishes, clear contours, powerful functionality, and user-friendly operation.

■  Disc-type Tool Magazine
The specially designed rotating tool magazine can hold up to 8 tools simultaneously, streamlining the machining process and significantly boosting work efficiency.

■  Vacuum-Suction & Clamping Dual-Function Worktable
The worktable features a PVC vacuum-suction surface combined with aluminum alloy clamping grooves, enabling both strong adsorption of materials with varying areas and mechanical clamping.

[Application Industries]

■  Furniture Industry
It is used for cutting and engraving various composite panels such as cabinet doors, wardrobe doors, cabinet bodies, wooden doors, solid wood doors, paint-free doors, set doors, rosewood furniture, and antique furniture.

■  Sheet Processing Industry
It is suitable for processing carbon mixtures such as plastic chemical parts, insulation parts, PCB, compact laminate, epoxy resin, ABS, PP, PE, organic glass, and aluminum-plastic panels.

■  Arts and Crafts Industry
It is suitable for engraving and cutting processes on materials such as graphite, artificial stone, PVC, acrylic, wood, bamboo, marble, organic boards, organic glass, double-color boards, as well as copper and aluminum.

■  Decoration Industry
It can engrave various exquisite patterns and texts on materials such as screens, wave boards, bamboo, organic boards, doors and windows, and double-color boards.

■  Electrical Industry
It is suitable for processing commonly used insulating structural parts in motors and electrical appliances, including but not limited to epoxy resin boards, phenolic resin boards (bakelite boards), FR4 glass fiber boards, and PC boards.

■  Advertising Industry
Suitable for processing advertising materials such as acrylic, MDF, and dual-color boards. Capable of fabricating neon signs, infinity mirrors, number plates, crystal letters, etc.

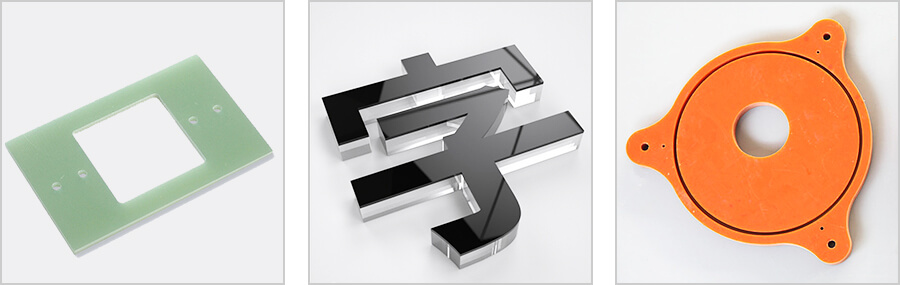

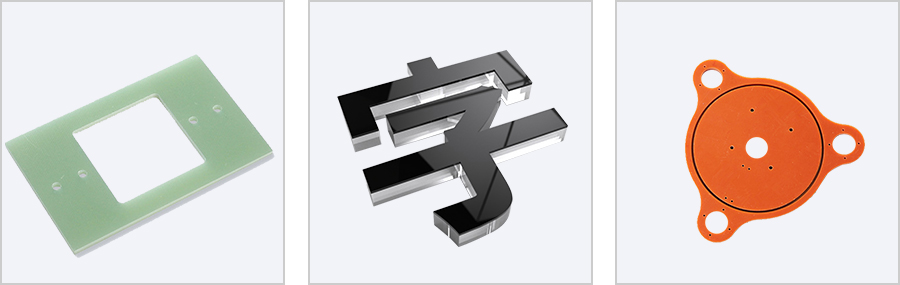

[Sample Display]
