[Parameter]

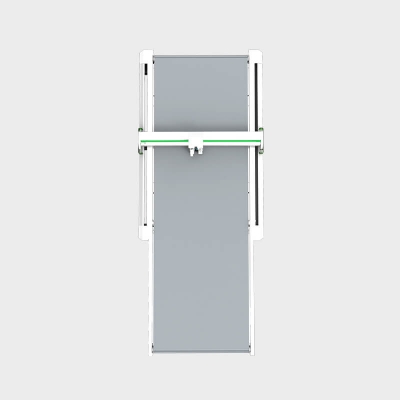

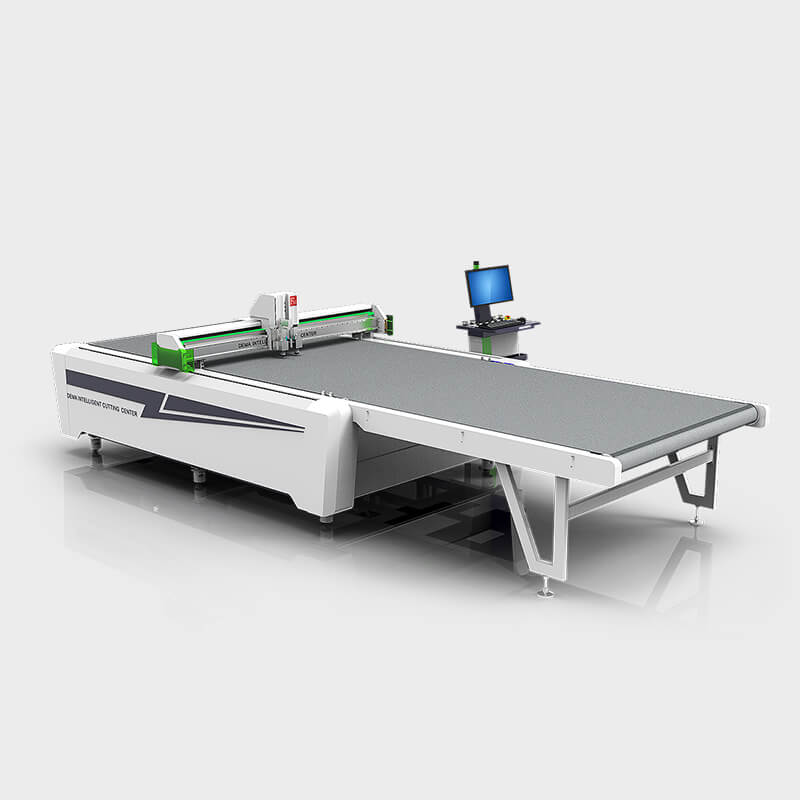

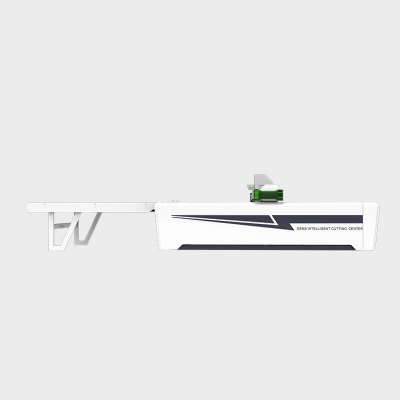

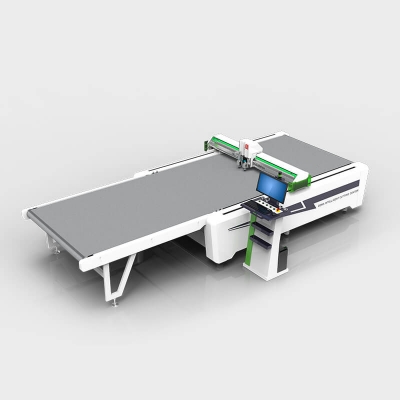

F22 High-speed Cutting Machine
Model	F22
Equipment Dimensions	5620mm*2265mm*1360mm
Machining stroke	2500mm*1650mm*70mm
Control system	DEMA ICUT multi-functional cutting control system
X/Y Transmission Mode	Grinding rack
Driver motor	High precision servo
Vibration knife	Multi-functional intelligent cutting module
CCD	Visual positioning system
Mesa structure	Thickened aviation honeycomb adsorbed aluminum sheet
Moving Speed	150m/min
Working Speed	90m/min
Voltage and frequency	AC380V/50Hz/60Hz

[Core Component Configuration]

■  High-flex cable with unyielding durability
 Crafted from imported materials, this high-flex cable is engineered to withstand extreme stress, ensuring reliable performance even after millions of repetitive motions. Its robust construction prevents breakage during continuous, high-frequency operations, extending service life and minimizing downtime.

■  Laser Tool Setter
 It improves the cutting accuracy and efficiency, and reduces the material waste rate by adopting the non-contact laser tool setter.

■  Universal Tool Holder Design
 Universal tool holder supports various knife tools, such as punching tool, indentation knife, vibration knife,round knife, drag tool, V-cut tool, pneumatic knife and kiss-cut tool. And different tools are applied for hundreds of flexible materials, so as to satisfy different industries’ requirement.

■  Rack Dual-drive Structure
The entire machine adopts a unique rack dual-drive structure, which significantly enhances the stability and tensile resistance of the machine tool.

■  Sorting Platform
The cut materials are automatically transported to the sorting platform, facilitating workers to sort and collect materials, saving checking time and improving work efficiency.

[Application Industries]

■  Advertising printing
F11 can process and produce billboards, signboards, display stands, posters, photos, roll, light boxes, labels, PVC board, KT board, aluminum-plastic board, ground stickers and so on.

■  Gift wrap
F11 can process all kinds of corrugated board, honeycomb board, pearl wool, EVA, coated paper, art paper, cardboard, carton and so on.

■  Printing industry
F11 can process special paper, plastic sheet, composite material, corrugated board, coated paper, art paper, cloth, non-woven fabric, etc.

■  Interior decoration
F11 can process fabrics, non-woven fabrics, EPE, EVA, wood and plastic composite materials, glass fiber reinforced plastics (FRP), wallpaper, wall stickers, etc.

■  Car interior
F11 can process fabrics, plastic sheets, foam materials, composite materials, leather, artificial leather, microfibers, carbon fibers, etc.

■  Clothing luggage
F11 can process cloth, wool, PU leather, artificial leather, cotton, linen, silk, knitting, plastic film, chemical fabric, etc.

[Sample Display]
