[Prameter]

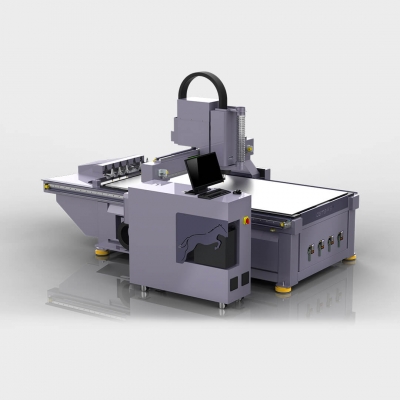

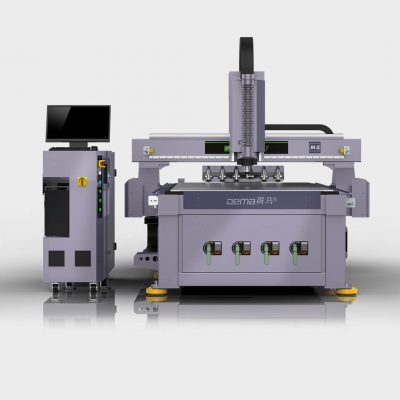

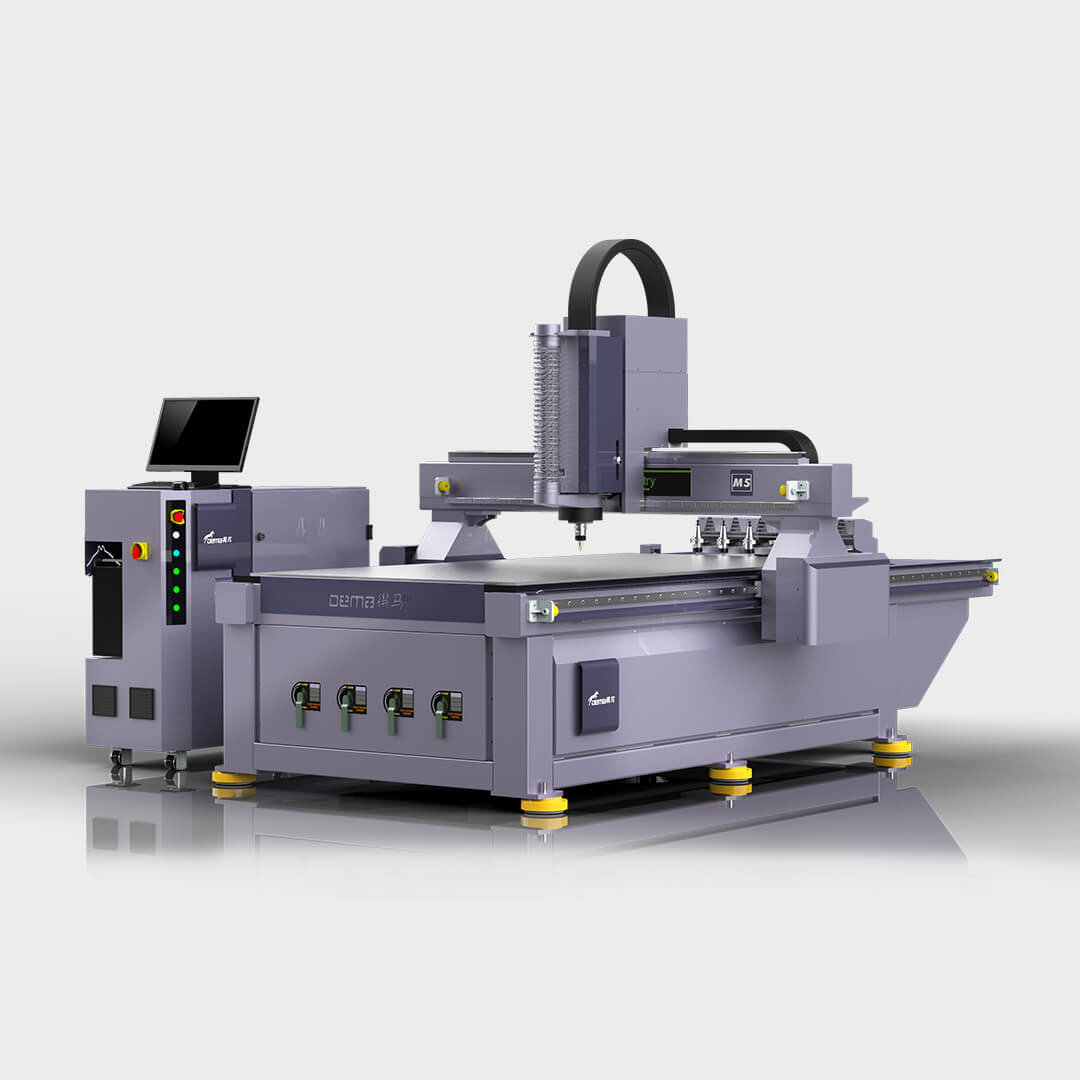

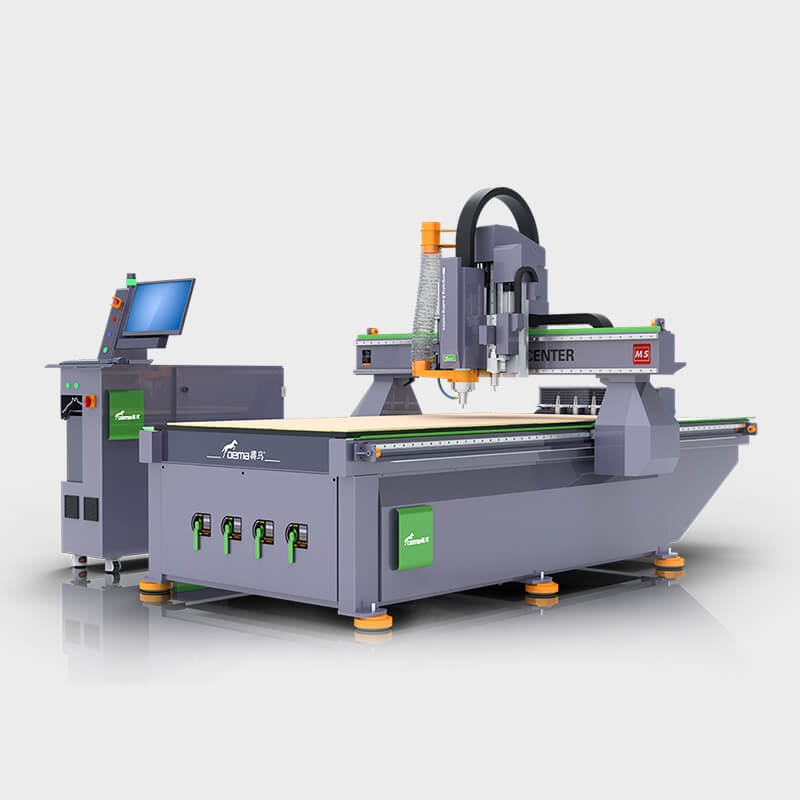

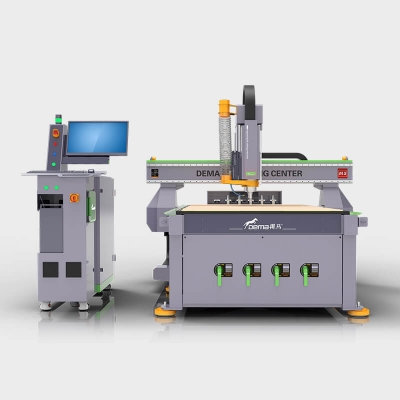

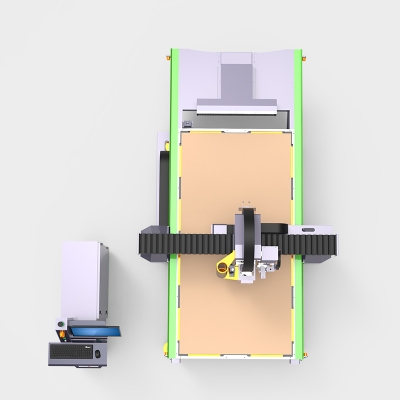

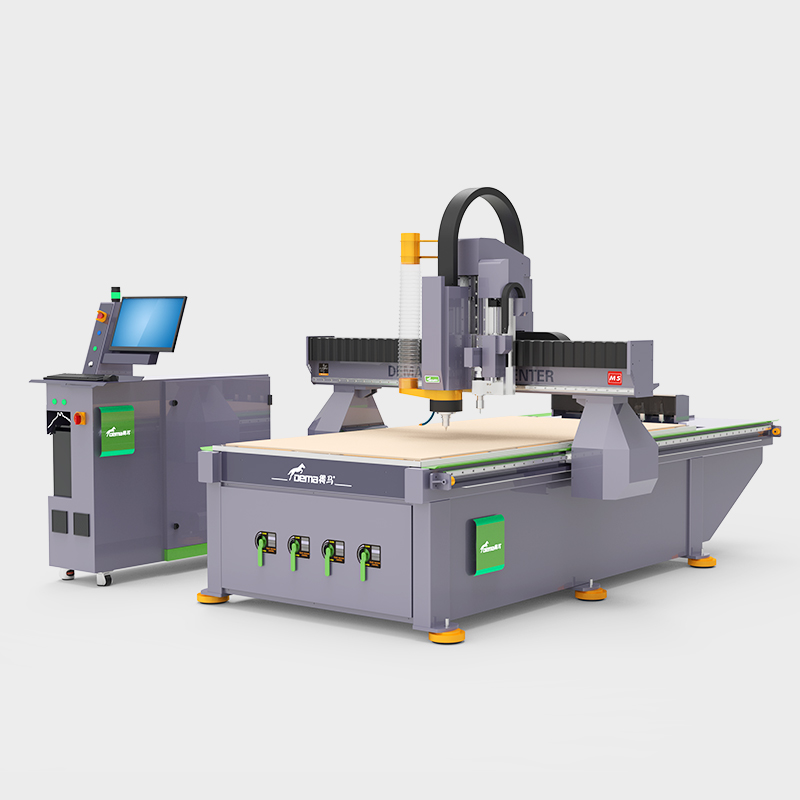

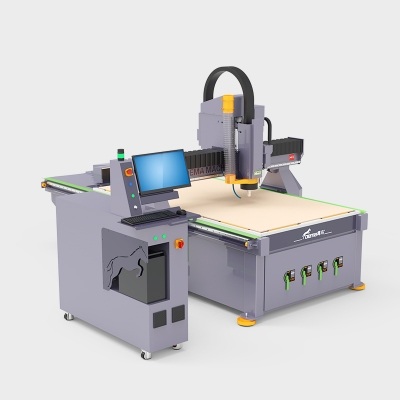

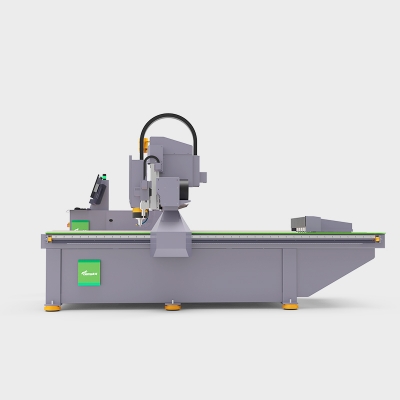

Dema M5-1325 CNC Engraving Machine
Model	M5-1325
Equipment Size	2100mm×3510mm×2000mm
Processing Dimensions	1220mm×2400mm
Table Top Dimensions	1300mm×2540mm
Control System	DEMA V9
X/Y Transmission Form	Grinding Rack
Z Transmission Form	High-Precision Ball Screw
Table Structure	4-Zone Vacuum Adsorption
ATC	Linear Tool Magazine, 6 Tools Clamping at One Time
Spindle Motor	7.5 kW Water-cooled Spindle
Vibration Knife	150W High-Frequency Vibration Knife (Optional)
CCD	Vision Positioning System (Optional)
Spindle Speed	24000r/min
Moving Speed	45m/min
Working Speed	30m/min
Working Voltage	AC380V/50Hz
Weight	1350kg

[Core Component Configuration]

■  Highly Flexible Cable
 The highly flexible cable, made of imported materials, is resistant to breakage, ensuring durability during long-term repeated operation.

■ Mature System
 Equipped with a mature industrial control system and S-type algorithm, it ensures high-speed operation of the machine tool, with a smooth bottom surface, clear contours, fine and non-serrated finishes. It is easy to operate and simple to get started with.

■ Suction-Clamping Dual Tabletop
 The table is equipped with PVC vacuum suction and aluminum alloy pressing grooves, which can not only strongly adsorb materials of different sizes but also enable clamping.

■ Rack Dual-Drive Structure
 The machine adopts a unique rack dual-drive structure, which enhances the stability and tensile resistance of the machine tool.

■  Linear Tool Magazine
 The custom-developed linear tool magazine enables more convenient and efficient processing.

[Application Industries]

■  Advertising Signs
Used for making organic board reliefs, three-dimensional doorhead letters, doorhead signs, plaques, neon light backboards, reminder signs, direction signs, PVC foam board letters, crystal letters, light box special boards, etc.

■  Wedding Props
Used for engraving KT board letters, PVC background patterns, water curtain backdrops, acrylic dessert tables, ceiling decorations, welcome display stands, arches, etc.

■  Woodworking Industry
Suitable for processing various wooden boards, cabinets, wardrobes, bookcases, panel furniture, Chinese-style screens, wood-carved plaques, grille partitions, wave board background walls, wooden decorative paintings, etc.

■ Architectural Decoration
Making architectural decorations such as carved doorheads, window grilles, murals, image walls, background walls, European-style components, decorative lines, European-style corbels, Chinese-style corbels, etc.

■ Craft Gifts
Used for processing exquisite gift boxes, small craft plates, creative jewelry boxes, storage boxes, small ornaments, fruit plates, decorative paintings, artistic clocks, wooden pendants, acrylic products, etc.

■  Sheet Processing
Suitable for processing medium density fiberboard, compact laminate, density board, PP board, PVC board, ABS board, PE board, packaging board, multi - layer board, plywood, etc.

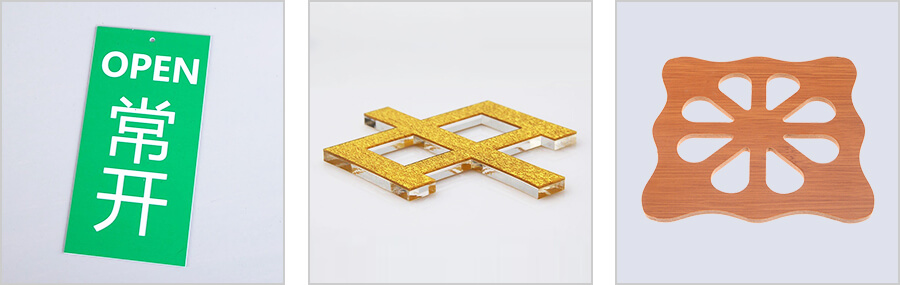

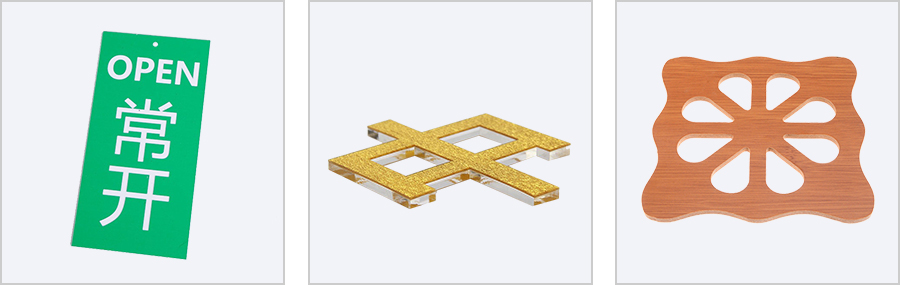

[Sample Display]
