[Prameter]

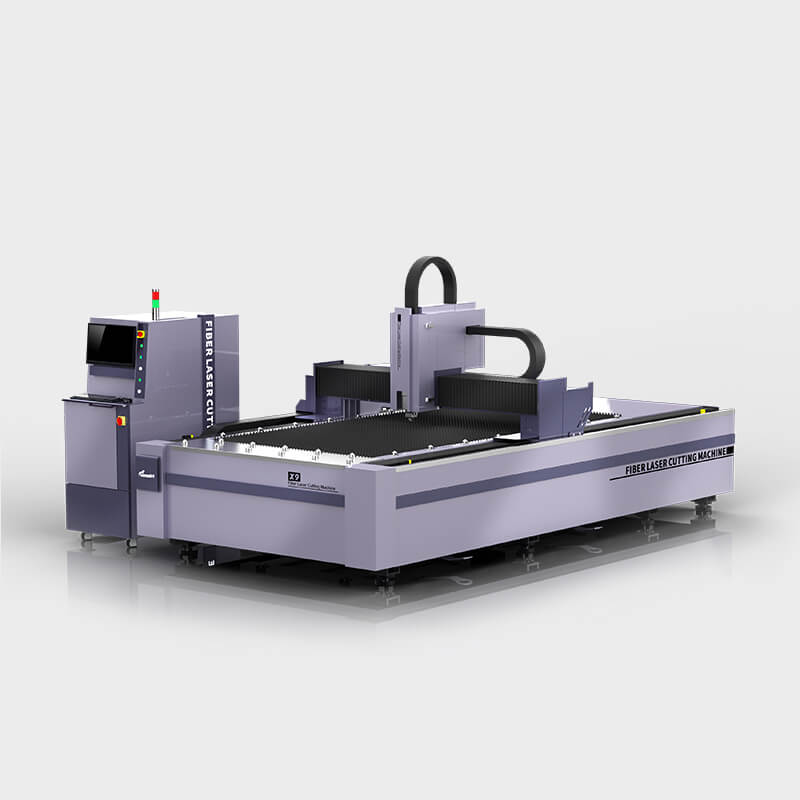

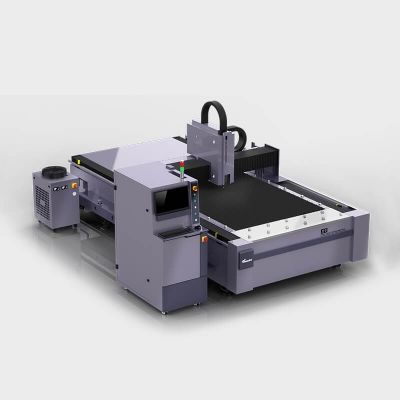

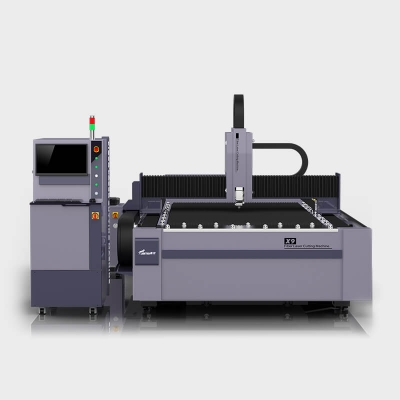

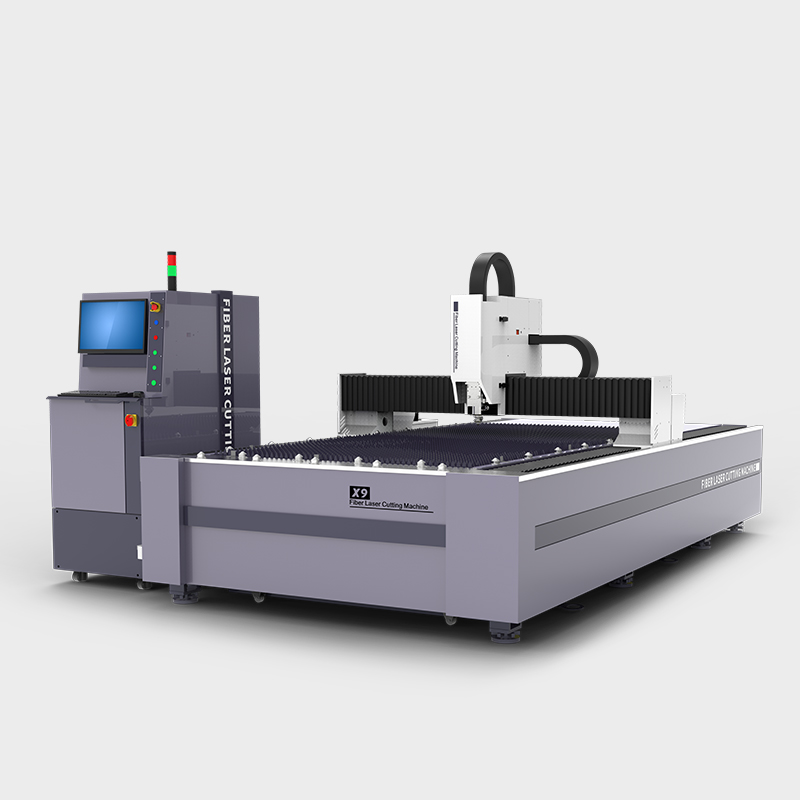

X9 Industrial Fiber Laser Cutting Machine
Model	X9-3015/4015/6020
Equipment Dimensions	4720mm*2500mm*2215mm   5820mm*2500mm*2215mm    8500mm*3800mm*2215mm
Machining Dimensions	1500mm*3000mm   1500mm*4000mm   2020mm*6050mm
Control system	Industrial-grade control system
Laser generator	Max Continuous Laser Generator
X/Y Transmission Mode	Ground Rack
Z-axis Transmission Mode	Ball Screw
Drive Motor	High-precision Servo
Drive Guide Rail	Heavy-duty High-precision Ground Guide Rail
Moving Speed	90m/min
Working Speed	40m/min
Working Voltage	AC380V/50Hz

[Core Component Configuration]

■  Aviation aluminum beam
Lightweight, high compressive strength, corrosion-resistant. It effectively reduces the load of the machine, improves the motion response speed of the machine, and extends the service life of transmission components.

■  High-flex cable with unyielding durability
Crafted from imported materials, this high-flex cable is engineered to withstand extreme stress, ensuring reliable performance even after millions of repetitive motions. Its robust construction prevents breakage during continuous, high-frequency operations, extending service life and minimizing downtime.

■  Mature System
Equipped with an industrial-grade control system, it ensures that the machine tool operates at high speeds with precise, jagged-free finishes, clear contours, powerful functionality, and user-friendly operation.

■  MaxPhotonics Laser
Equipped with a Max continuous laser generator, it features high power output, maintenance-free operation, and high electro-optical conversion efficiency.

■  Rack Dual-drive Structure
The entire machine adopts a unique rack dual-drive structure, which significantly enhances the stability and tensile resistance of the machine tool.

[Application Industries]

■  Advertising industry
Used for the processing of various advertising metal characters, metal signs, landmark structures, Party-building signboards, etc.

■  Kitchenware industry
Capable of cutting sheet metal used in stainless steel cabinets, sinks, smart dishwashers, integrated stoves, range hoods, disinfection cabinets, storage racks, etc.

■  Metal Door Industry
Specialized in the processing of stainless steel doors, zinc alloy doors, copper doors, villa doors, courtyard doors, anti-theft doors, entrance doors, fireproof doors, and building access doors, etc.

■  Automotive Manufacturing Industry
Suitable for the processing of automotive components, vehicle bodies, car roofs, car trunks, etc.

■  Sheet Metal Processing Industry
Suitable for the processing of various sheet metals, including stainless steel, galvanized sheets, alloy steel plates, cold-rolled sheets, electrolytic sheets, brass plates, aluminum and aluminum alloy plates, etc.

■  Chassis and Cabinet Industry
Used for the cutting of various metal cabinets, including distribution boxes, filing cabinets, computer cases, storage cabinets, server racks, network cabinets, etc.

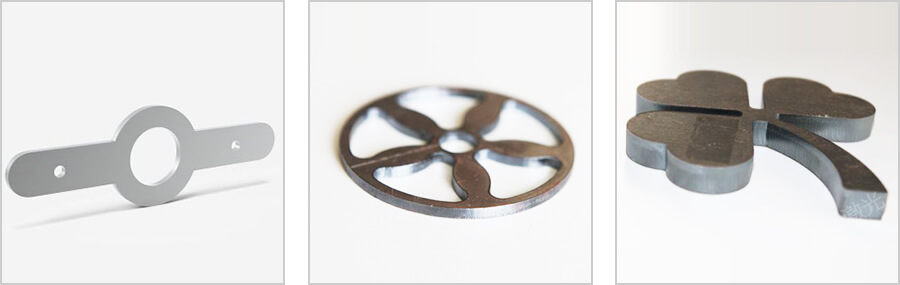

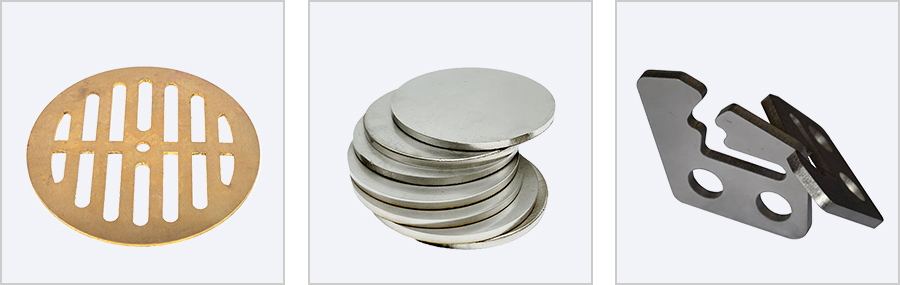

[Sample Display]
