[Parameter]

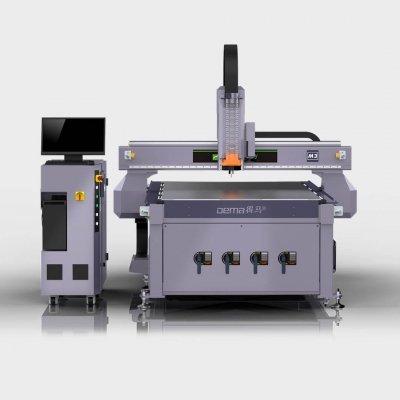

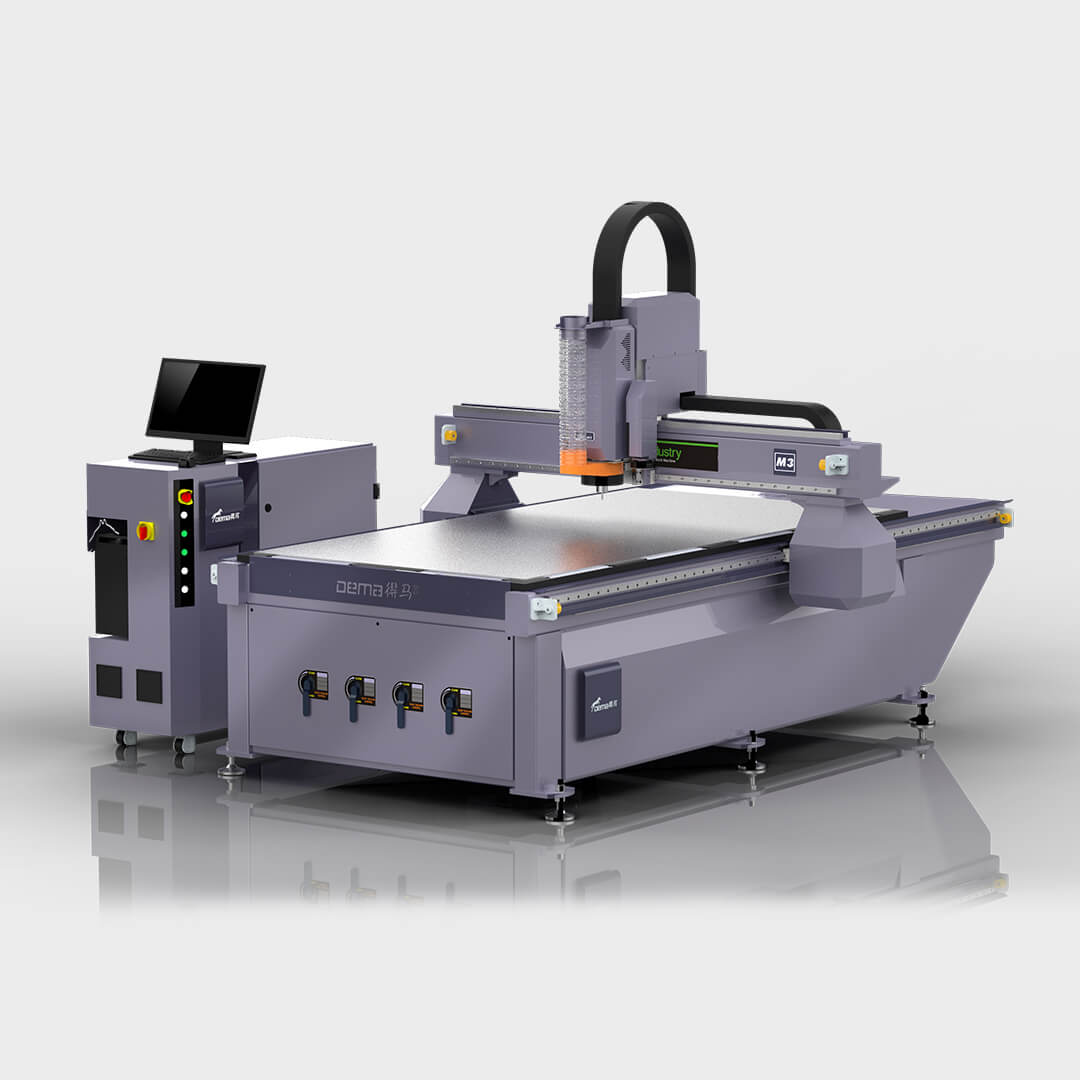

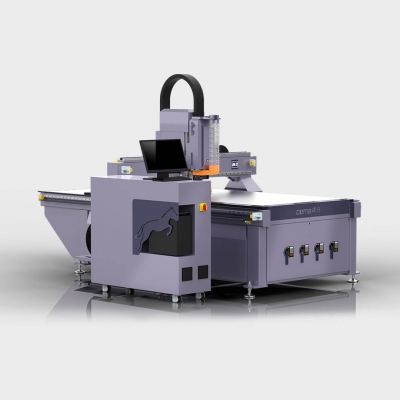

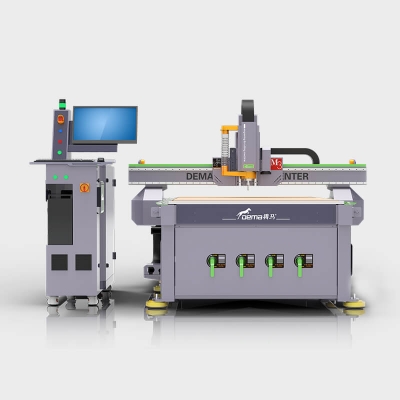

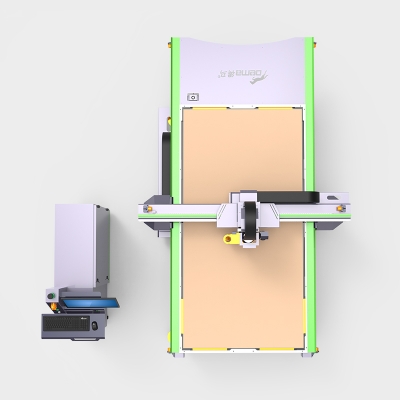

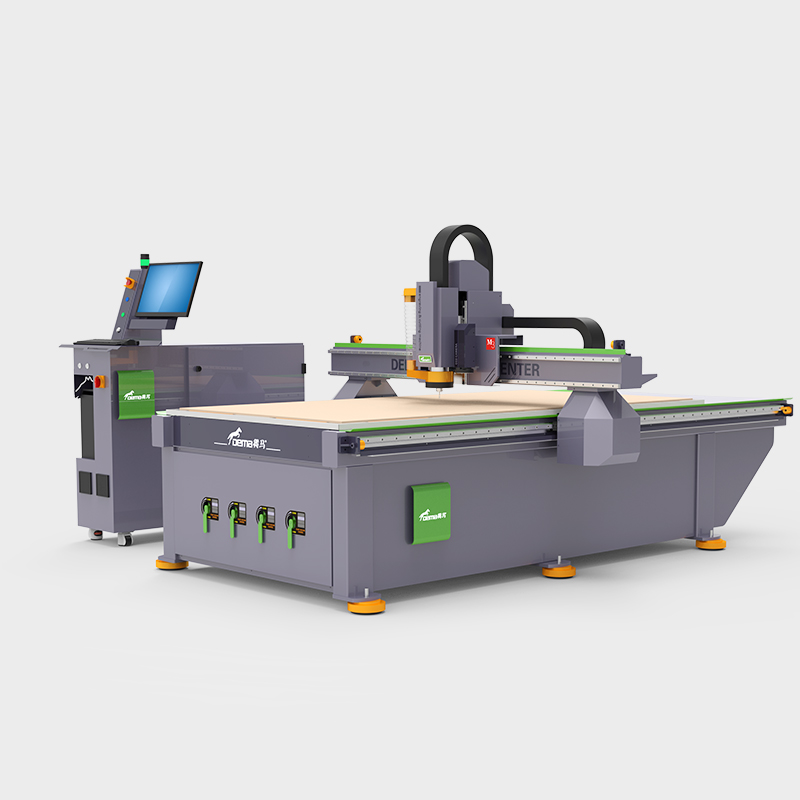

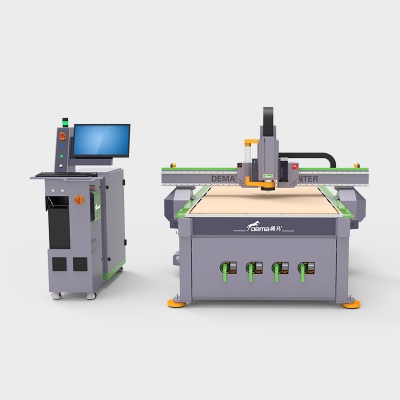

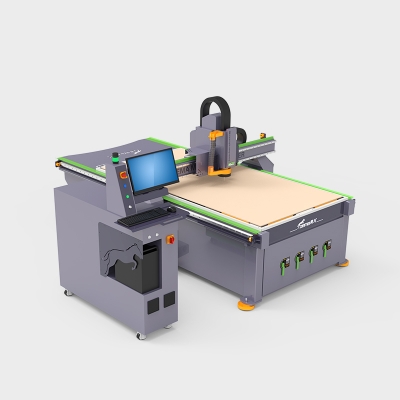

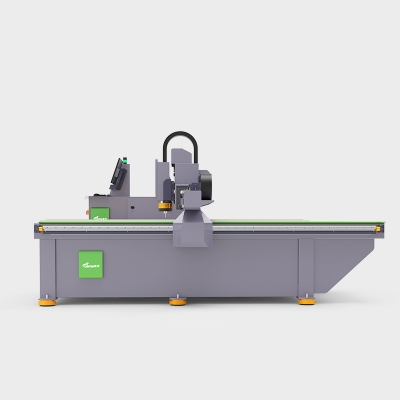

M3-1325 High-speed Edge-following Engraving Machine
Model	M3-CCD-1325
Equipment Size	2100mm×3300mm×2000mm
Processing Dimensions	1220mm×2440mm
Table Top Dimensions	1300mm×2540mm
Table Structure	4-Zone Vacuum Adsorption
Control system	DEMA V9
Edge-following Function	CCD Visual Positioning
X/Y Transmission Form	Grind Rack and Pinion
Z Transmission Form	High-Precision Ball Screw
Drive Control System	High-Precision Full Servo
Spindle Motor	4.5kW High-speed Water-cooled Spindle
Spindle Refrigeration	Constant Temperature Water Cycle Refrigerator
Spindle Speed	30000 r/min
Vacuum Suction Pump	7.5kW Air Circulation Pump
Movement Speed	100m/min
Working Speed	60m/min
Working Voltage	AC380V/50Hz
Weight	1250kg

[Core Component Configuration]

■  Mature Edge-Tracking Control System
Features strong recognition ability, fast positioning speed, high positioning accuracy, convenient operation, and ease of use.

■  Highly Flexible Cable
 The highly flexible cable, made of imported materials, is resistant to breakage, ensuring durability during long-term repeated operation.

■  Suction-Clamping Dual Tabletop
 The table is equipped with PVC vacuum suction and aluminum alloy pressing grooves, which can not only strongly adsorb materials of different sizes but also enable clamping.

■  Rack Dual-Drive Structure
The machine adopts a unique rack dual-drive structure, which enhances the stability and tensile resistance of the machine tool.

[Application Industries]

■ Advertising and Decoration
It is used for making doorhead plaques, signboards, direction signs, welcome signs, neon lights, light box panels, mini letters, infinity mirrors, crystal letters, PVC letters, cultural walls, display cabinets, etc.

■  Commercial Display Art
Suitable for processing space board three-dimensional displays, PVC standing signs, figure standing signs, acrylic floor ornaments, PVC display racks, PVC foam board letters, internet-famous light box stacks, etc.

■  Furniture Industry
Ideal for cutting and engraving various composite panels used in cabinet doors, wooden doors, rosewood furniture, antique-style furniture, and other woodworking applications.

■ Wood Products
Processing wooden speaker enclosures, musical instruments, computer desks, game machine cabinets, sewing machine tables, exquisite gift boxes, wooden ornaments, decorative paintings, relief pendants, keyboard bases, etc.

■  Interior Decoration
Processing personalized door panels, decorative wall panels, sound-absorbing panels, wave boards, bamboo charcoal fiber background walls, ceilings, relief decorative paintings, organic boards, partitions, Chinese-style screens, etc.

■  Craft Gifts
Suitable for processing wooden craft ornaments, relief ornaments, acrylic architectural ornaments, personalized coasters, souvenirs, decorative murals, relief boxes, creative gifts, etc.

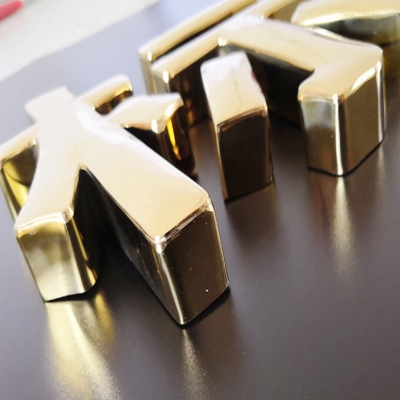

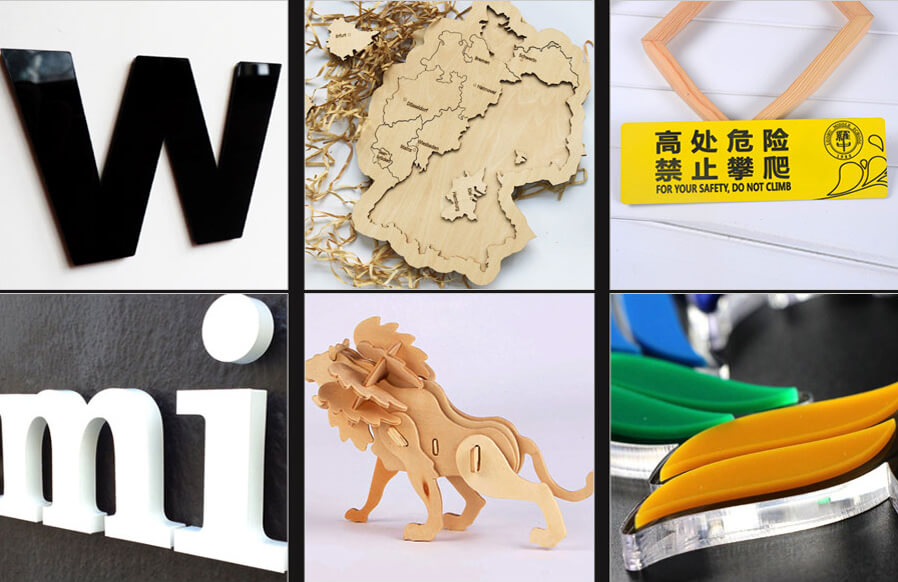

[Sample Display]
