[Prameter]

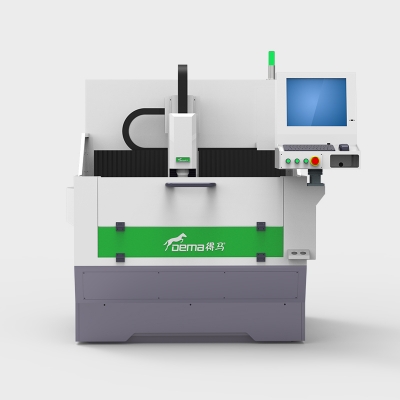

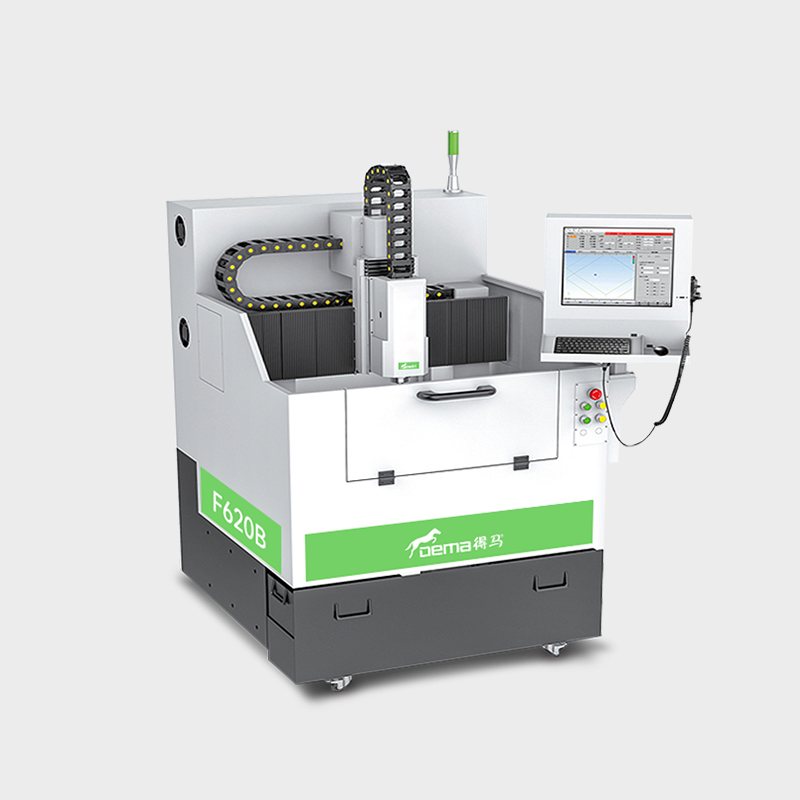

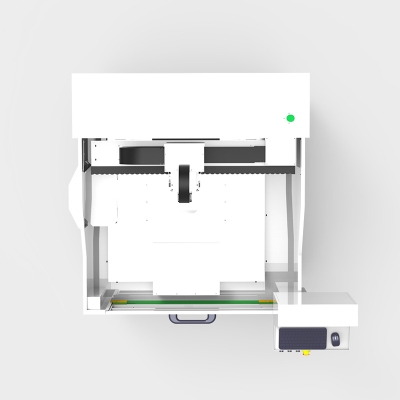

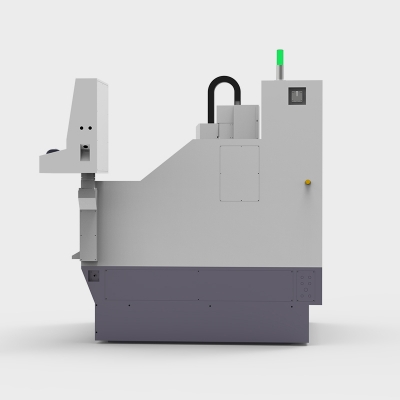

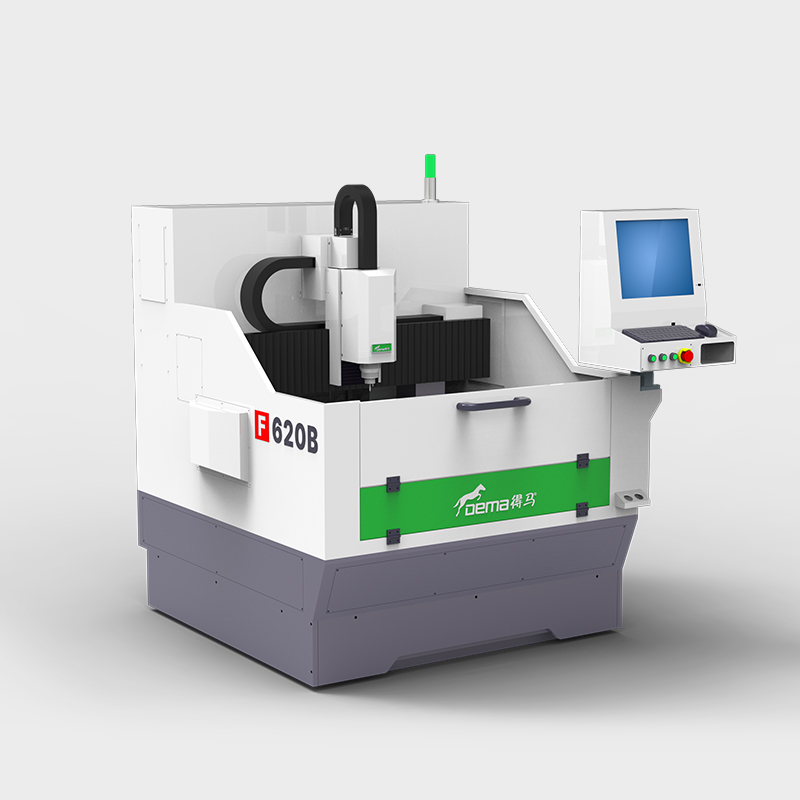

F620B Water Sink Engraving Machine
Model	F620B
Table Size	620mm×620mm
Maximum Load Capacity	100kg
Machine Dimension	1520mm×1788mm×1780mm
Water/Oil Tank Capacity	70L
Distance from Spindle End Face to Table Surface	220mm
Machine Total Weight	1600kg
Power Supply Voltage	AC 220V/380V
Maximum Power	9kW
Air Pressure Source	0.5MPa
X/Y/Z Axis Travel	620mm/620mm/150mm
Rapid Traverse Speed	12m/min
Maximum Cutting Feed Rate	12m/min
Positioning Accuracy	士0.008/300mm
Repeat Positioning Accuracy	士0.005/300mm
Heat Exchanger and Oil Cooler	CW-3500
Maximum Spindle Speed	40000r/min
Spindle Output Power	4kW
Spindle Diameter	80mm
Transmission Components	Three-Axis Coupling
Tool Setter	Automatic Tool Setter
Tool Magazine Capacity	9 Pcs
Tool Holder	Iso20

[Core Component Configuration]

■  Marble Machine Body
Undergoes natural aging treatment, featuring minimal thermal deformation, rigid structure and excellent vibration absorption. It maintains precision and reduces tool wear during high-speed machining; corrosion and wear resistant, easy to maintain and with a long service life, perfectly meeting the demands of precision machining.

■  Full Ball Screw Moving Table
Boasts high transmission precision and stable operation without backlash, with accurate positioning and minimal repeat positioning error. It has a strong load-bearing capacity, effectively suppresses machining vibration, and is not prone to precision attenuation even under long-term high-load operation.

■  Integrated CNC System
Equipped with an integrated CNC system, it features simple wiring and fast response, ensures high precision in hole drilling and cutting, and requires less maintenance with a low failure rate.

■  Disk-type Servo Tool Magazine
Realizes accurate indexing via servo drive, with fast tool change speed, stable clamping and anti-vibration performance. It is compatible with various tool specifications, meeting all-process machining requirements of water tanks.

■  Hidden Built-in Water Cooling Cycle
Equipped with a hidden built-in water cooling cycle, it enables fast and uniform heat dissipation to prevent spindle precision attenuation caused by overheating. With no exposed pipelines for higher safety, it is suitable for long-term high-precision engraving and cutting of water tanks.

[Application Industries]

■ Metal Parts Machining
Specializes in machining small precision parts of soft metals such as aluminum and copper, including sensor mounting brackets, electronic terminals, micro transmission gears, heat sink flow channels and more.

■  Fixture Machining
Machines tooling and test fixtures, such as PCB board positioning fixtures and component assembly clamps, suitable for engineering plastics, aluminum alloys, bakelite and other materials.

■  Computer Plate Making
Carves various printing plates with high precision, e.g., resin relief plates and copper hot stamping plates. It can engrave delicate characters and intricate patterns & textures, meeting the requirements of plate making and reproduction.

■  Powder Metallurgy Machining
Performs precision finishing on sintered powder metallurgy parts, involving trimming of powder metallurgy gears, drilling and chamfering of structural parts, profile precision engraving of special-shaped parts, etc.

■ Mold Machining
Processes small molds and matching accessories, including mold electrodes, small cavity molds, mold inserts, polishing positioning fixtures, datum positioning blocks and more.

■  Plastic Sprue Milling
Specializes in sprue milling and flash trimming for plastic parts, conducting sprue milling and overflow removal for electronic enclosures, toy accessories and other products made of ABS, PC, PP and other materials.

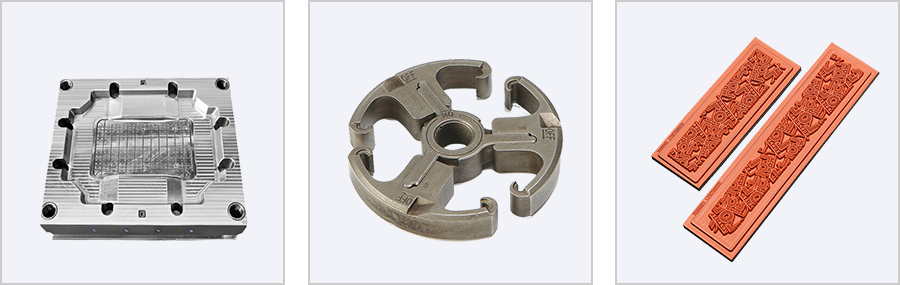

[Sample Display]
