[Parameter]

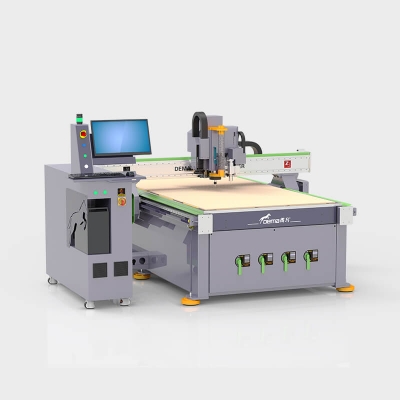

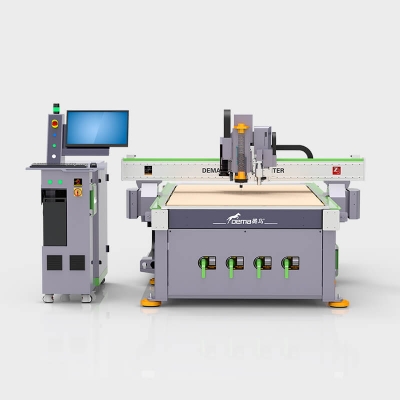

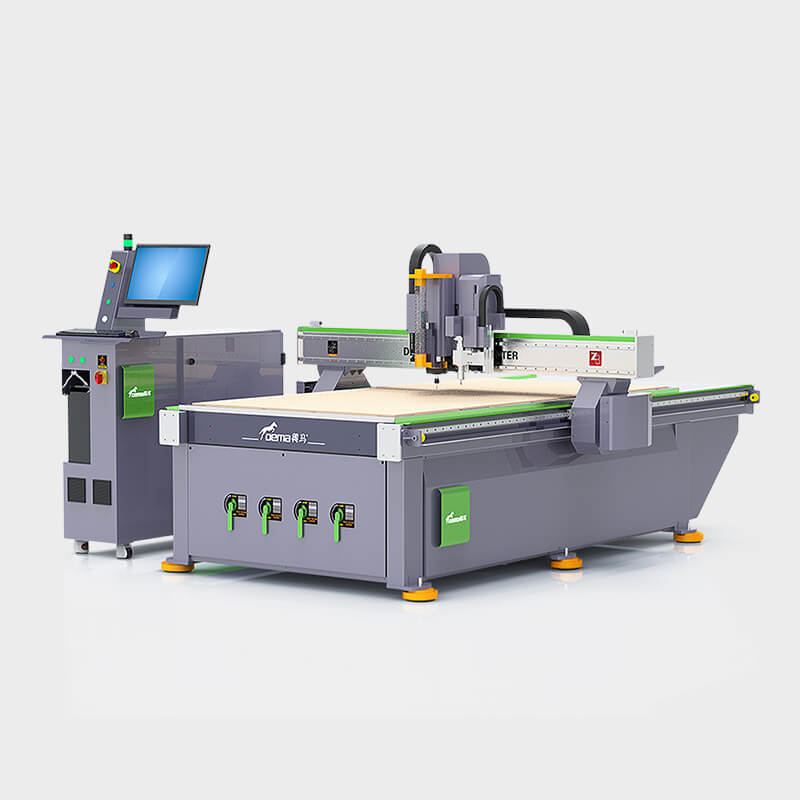

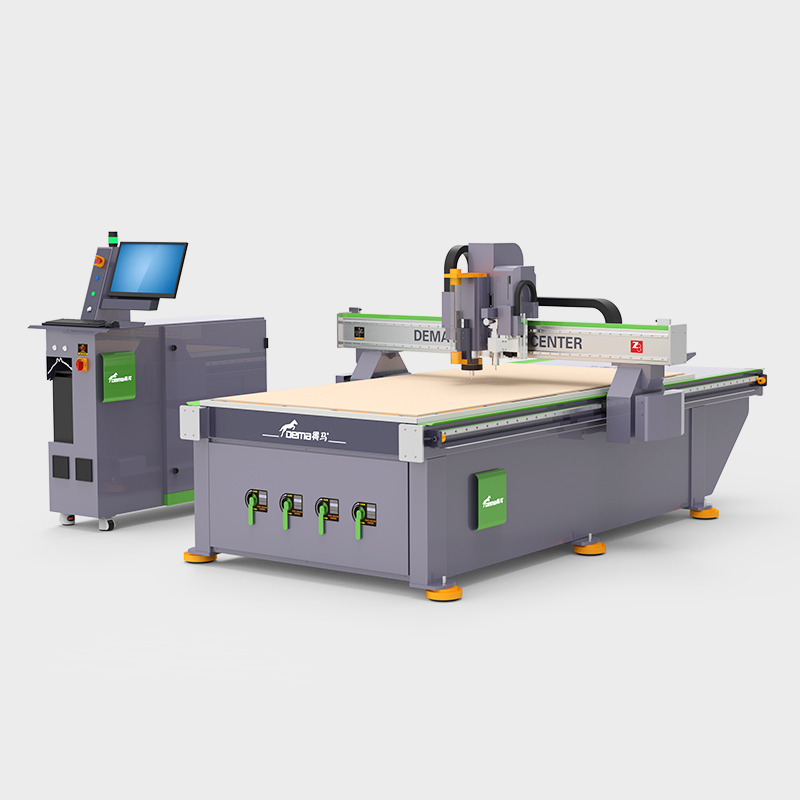

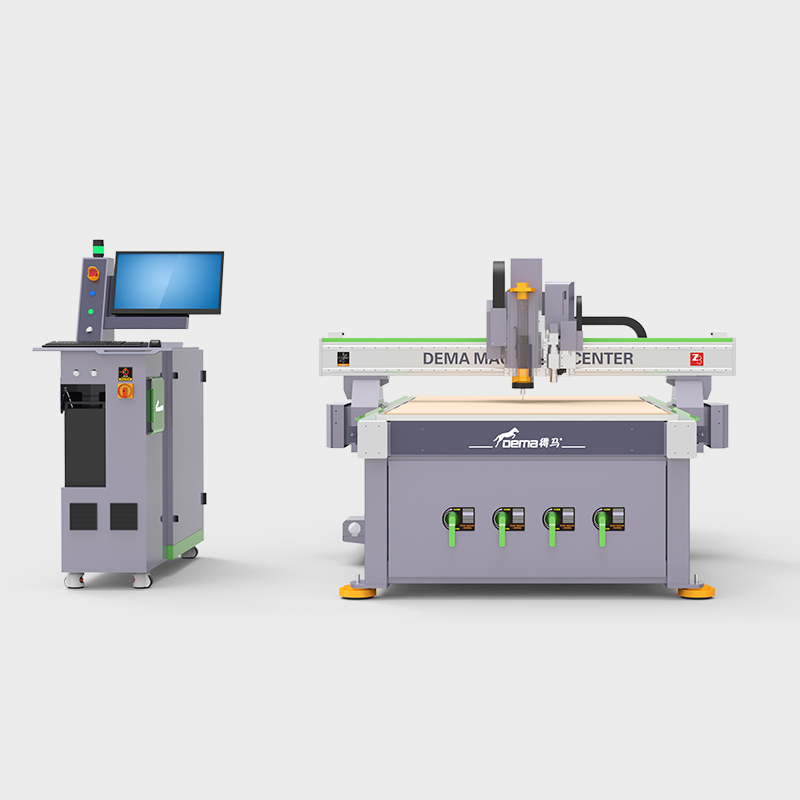

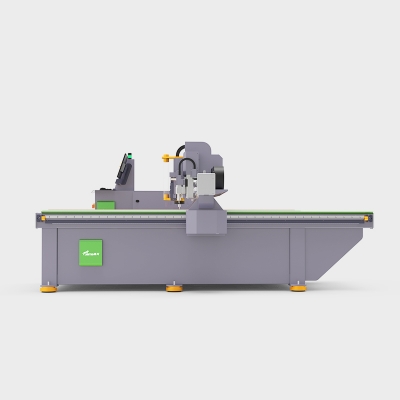

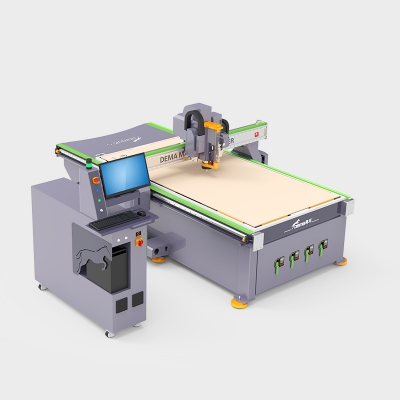

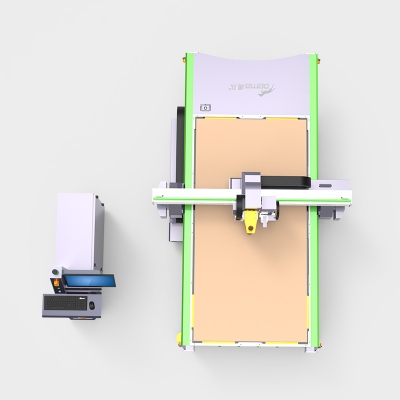

Z3 High-speed Edge-following Engraving Machine
Model	Z3-1325
Equipment Dimensions	2100mm*3300mm*2000mm
Machining Dimensions	1220mm*2400mm
Control system	DEMA V9 Vibration Knife Edge-following Control System
X/Y Transmission Mode	Ground Rack
Z Transmission Mode	High-precision Ball Screw
Drive Motor	High-precision Servo
Spindle Motor	4.0kW High-speed Water-cooled Spindle
Vibration Knife	Multi-function Vibration Cutting Module
CCD	Vision Positioning System
Table Structure	Zoned Vacuum Suction
Working Voltage	AC380V/50Hz

[Core Component Configuration]

■  Rack Dual-drive Structure
The entire machine adopts a unique rack dual-drive structure, which significantly enhances the stability and tensile resistance of the machine tool.

■  High-flex cable with unyielding durability
 Crafted from imported materials, this high-flex cable is engineered to withstand extreme stress, ensuring reliable performance even after millions of repetitive motions. Its robust construction prevents breakage during continuous, high-frequency operations, extending service life and minimizing downtime.

■  Vacuum-Suction & Clamping Dual-Function Worktable
 The worktable features a PVC vacuum-suction surface combined with aluminum alloy clamping grooves, enabling both strong adsorption of materials with varying areas and mechanical clamping.

■  High-frequency Vibrating Knife
Replaces manual cutting, increasing efficiency by 4 to 6 times compared to manual operations, reducing material waste, and improving material utilization by over 10%. It solves the production challenges of small-batch orders, and is environmentally friendly with no smoke or dust, requiring minimal consumables.

■  High-speed Machining
Equipped with CCD automatic edge-following control system, featuring high detection accuracy, fast processing speed, strong anti-interference capability, and safe-stable operation.

[Application Industries]

■  Advertising Industry Applications
Suitable for processing advertising materials such as acrylic, MDF (Medium-Density Fiberboard), double-color board, and PVC foam board.

■  Sheet Metal Processing Industry
Suitable for processing plastic chemical components, PCB (Printed Circuit Boards), compact laminate sheets, epoxy resin, ABS, PP, PE, and other carbon-based composites.

■  Craft Industry
Suitable for processing materials such as artificial stone, PVC, wood, bamboo, plexiglass, copper, and aluminum in the craft manufacturing sector.

■  Furniture Industry
Ideal for cutting and engraving various composite panels used in cabinet doors, wooden doors, rosewood furniture, antique-style furniture, and other woodworking applications.

■  Decoration Industry
Capable of engraving intricate patterns and text on materials such as screens, wave boards, bamboo, marble, and acrylic sheets for decorative applications.

■  Electrical Appliance Industry
Suitable for processing insulation structural components commonly used in motors and electrical appliances.

[Sample Display]
